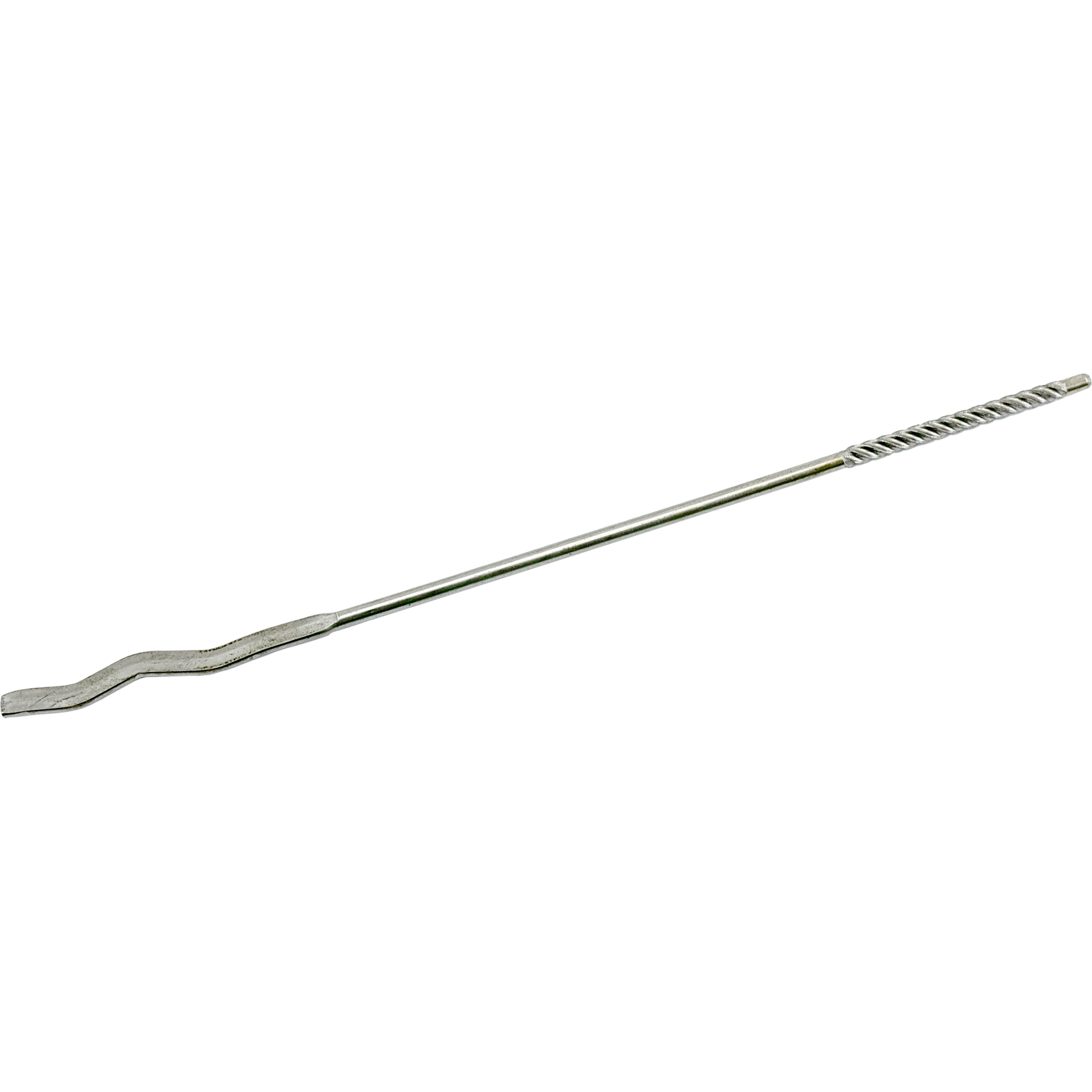

UNI-glue self tapping wall tie

Cavity anchor with wood thread on one side. Applicable for timber frame construction walls or in combination with a collar plug, UNI-flex plug or UNI-perfo plug for mounting in sand-lime brick, concrete and brick. The other end has a flat-pressed corrugated profile, which is suitable for thin joint strips.

Length

Cavity Size

Details & dimensions

Article

Article number38463

EAN code8714318061364

Packaging

EAN code8714318061371

Packaging250 per box

Length285 mm

Width140 mm

Height63 mm

Dimensions

UNI-glue self tapping wall tie

Length (l)220 mm

Diameter4 mm

Cavity Size115 +/- 15 mm

Environmental classMX 4

Impact WireSL 4,6x60 mm

MaterialRVS 316

Steel QualityW-Nr.: 1.4401-1.4362

Surface treatment316 O.G.

Downloads

Drawings and models in 2D and 3D

Processing & accessories

1 / 5

View our assembly instructions here that help you step by step to an end result.

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Length	Diameter	Cavity Size	Environmental class	Impact Wire	Material	Steel Quality	Surface treatment
UNI-glue self tapping wall tie	38467	250 per box	275 mm	4 mm	170 +/- 15 mm	MX 4	SL 4,6x60 mm	RVS 316	W-Nr.: 1.4401-1.4362	316 O.G.
UNI-glue self tapping wall tie	38466	250 per box	400 mm	4 mm	295 +/- 15 mm	MX 4	SL 4,6x60 mm	RVS 316	W-Nr.: 1.4401-1.4362	316 O.G.
UNI-glue self tapping wall tie	384657	250 per box	375 mm	4 mm	270 +/- 15 mm	MX 4	SL 4,6x60 mm	RVS 316	W-Nr.: 1.4401-1.4362	316 O.G.
UNI-glue self tapping wall tie	384655	250 per box	350 mm	4 mm	245 +/- 15 mm	MX 4	SL 4,6x60 mm	RVS 316	W-Nr.: 1.4401-1.4362	316 O.G.
UNI-glue self tapping wall tie	384653	250 per box	325 mm	4 mm	220 +/- 15 mm	MX 4	SL 4,6x60 mm	RVS 316	W-Nr.: 1.4401-1.4362	316 O.G.
UNI-glue self tapping wall tie	38465	250 per box	300 mm	4 mm	195 +/- 15 mm	MX 4	SL 4,6x60 mm	RVS 316	W-Nr.: 1.4401-1.4362	316 O.G.
UNI-glue self tapping wall tie	38464	250 per box	250 mm	4 mm	145 +/- 15 mm	MX 4	SL 4,6x60 mm	RVS 316	W-Nr.: 1.4401-1.4362	316 O.G.
UNI-glue self tapping wall tie	38463	250 per box	220 mm	4 mm	115 +/- 15 mm	MX 4	SL 4,6x60 mm	RVS 316	W-Nr.: 1.4401-1.4362	316 O.G.
UNI-glue self tapping wall tie	38462	250 per box	190 mm	4 mm	85 +/- 15 mm	MX 4	SL 4,6x35 mm	RVS 316	W-Nr.: 1.4401-1.4362	316 O.G.
UNI-glue self tapping wall tie	38461	250 per box	160 mm	4 mm	55 +/- 15 mm	MX 4	SL 4,6x35 mm	RVS 316	W-Nr.: 1.4401-1.4362	316 O.G.
