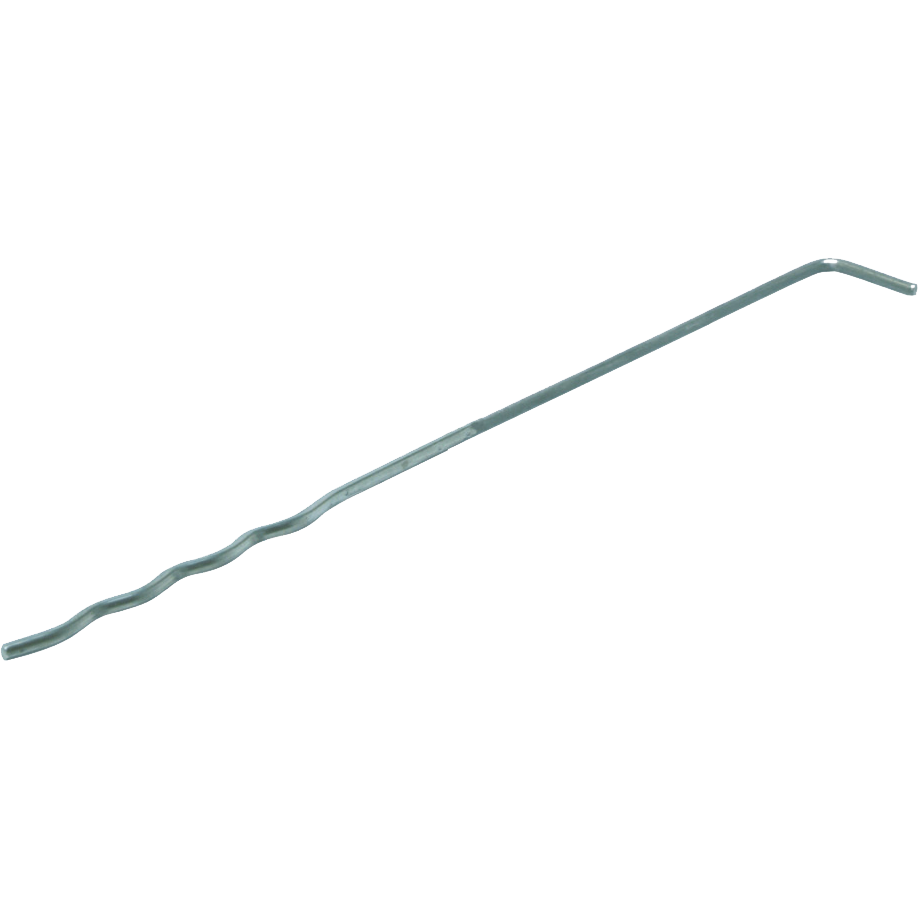

UNI-L wall tie

Traditional cavity anchor made of wire with an L-shape for the masonry inner wall and a corrugated profile for the masonry outer wall.

Length

Diameter

Cavity Size

Environmental class

MX 1

MX 4

Material

RVS 316

Steel

Steel Quality

DX51

W-Nr.: 1.4401-1.4362

Surface treatment

316 O.G.

Details & dimensions

Article

Article number32566

EAN code8714318000394

Packaging

EAN code8714318100384

Packaging250 per box

Length390 mm

Width230 mm

Height75 mm

Dimensions

UNI-L wall tie

Length (l)350 mm

Diameter5 mm

Cavity Size240 +/- 15 mm

Environmental classMX 1

Hook25 mm

MaterialSteel

Steel QualityDX51

Surface treatment

Downloads

Drawings and models in 2D and 3D

Processing & accessories

1 / 10

View our assembly instructions here that help you step by step to an end result.

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Length	Diameter	Cavity Size	Environmental class	Hook	Material	Steel Quality	Surface treatment
UNI-L wall tie	37300	250 per box	170 mm	3 mm	55 +/- 15 mm	MX 4	25 mm	RVS 316	W-Nr.: 1.4401-1.4362	316 O.G.
UNI-L wall tie	37310	250 per box	200 mm	3 mm	85 +/- 15 mm	MX 4	25 mm	RVS 316	W-Nr.: 1.4401-1.4362	316 O.G.
UNI-L wall tie	37320	250 per box	230 mm	3 mm	115 +/- 15 mm	MX 4	25 mm	RVS 316	W-Nr.: 1.4401-1.4362	316 O.G.
UNI-L wall tie	37324	250 per box	230 mm	4 mm	115 +/- 15 mm	MX 4	25 mm	RVS 316	W-Nr.: 1.4401-1.4362	316 O.G.
UNI-L wall tie	37330	250 per box	260 mm	3 mm	145 +/- 15 mm	MX 4	25 mm	RVS 316	W-Nr.: 1.4401-1.4362	316 O.G.
UNI-L wall tie	37378	250 per box	260 mm	3,6 mm	145 +/- 15 mm	MX 4	25 mm	RVS 316	W-Nr.: 1.4401-1.4362	-
UNI-L wall tie	37334	250 per box	260 mm	4 mm	145 +/- 15 mm	MX 4	25 mm	RVS 316	W-Nr.: 1.4401-1.4362	316 O.G.
UNI-L wall tie	37335	250 per box	275 mm	3 mm	160 +/- 15 mm	MX 4	25 mm	RVS 316	W-Nr.: 1.4401-1.4362	316 O.G.
UNI-L wall tie	37336	250 per box	275 mm	4 mm	160 +/- 15 mm	MX 4	25 mm	RVS 316	W-Nr.: 1.4401-1.4362	316 O.G.
UNI-L wall tie	37340	250 per box	290 mm	3 mm	175 +/- 15 mm	MX 4	25 mm	RVS 316	W-Nr.: 1.4401-1.4362	316 O.G.
UNI-L wall tie	37380	250 per box	290 mm	3,6 mm	175 +/- 15 mm	MX 4	25 mm	RVS 316	W-Nr.: 1.4401-1.4362	-
UNI-L wall tie	37344	250 per box	290 mm	4 mm	175 +/- 15 mm	MX 4	25 mm	RVS 316	W-Nr.: 1.4401-1.4362	316 O.G.
UNI-L wall tie	37350	250 per box	320 mm	3 mm	210 +/- 15 mm	MX 4	25 mm	RVS 316	W-Nr.: 1.4401-1.4362	316 O.G.
UNI-L wall tie	37354	250 per box	320 mm	4 mm	210 +/- 15 mm	MX 4	25 mm	RVS 316	W-Nr.: 1.4401-1.4362	316 O.G.
UNI-L wall tie	37362	250 per box	290 mm	5 mm	170 +/- 15 mm	MX 4	25 mm	RVS 316	W-Nr.: 1.4401-1.4362	316 O.G.
UNI-L wall tie	37364	250 per box	320 mm	5 mm	200 +/- 15 mm	MX 4	25 mm	RVS 316	W-Nr.: 1.4401-1.4362	316 O.G.
UNI-L wall tie	37366	250 per box	350 mm	5 mm	230 +/- 15 mm	MX 4	25 mm	RVS 316	W-Nr.: 1.4401-1.4362	316 O.G.
UNI-L wall tie	37368	250 per box	400 mm	5 mm	280 +/- 15 mm	MX 4	25 mm	RVS 316	W-Nr.: 1.4401-1.4362	316 O.G.
UNI-L wall tie	37371	250 per box	140 mm	3,6 mm	25 +/- 15 mm	MX 4	25 mm	RVS 316	W-Nr.: 1.4401-1.4362	-
UNI-L wall tie	37372	250 per box	170 mm	3,6 mm	55 +/- 15 mm	MX 4	25 mm	RVS 316	W-Nr.: 1.4401-1.4362	316 O.G.
UNI-L wall tie	37374	250 per box	200 mm	3,6 mm	85 +/- 15 mm	MX 4	25 mm	RVS 316	W-Nr.: 1.4401-1.4362	316 O.G.
UNI-L wall tie	37376	250 per box	230 mm	3,6 mm	115 +/- 15 mm	MX 4	25 mm	RVS 316	W-Nr.: 1.4401-1.4362	316 O.G.
UNI-L wall tie	32502	250 per box	170 mm	3,6 mm	55 +/- 15 mm	MX 1	25 mm	Steel	DX51
UNI-L wall tie	32502	1000 per box	170 mm	3,6 mm	55 +/- 15 mm	MX 1	25 mm	Steel	DX51
UNI-L wall tie	32512	250 per box	200 mm	3,6 mm	85 +/- 15 mm	MX 1	25 mm	Steel	DX51
UNI-L wall tie	32522	250 per box	230 mm	3,6 mm	115 +/- 15 mm	MX 1	25 mm	Steel	DX51
UNI-L wall tie	32522	1000 per box	230 mm	3,6 mm	115 +/- 15 mm	MX 1	25 mm	Steel	DX51
UNI-L wall tie	32524	250 per box	230 mm	4 mm	115 +/- 15 mm	MX 1	25 mm	Steel	DX51
UNI-L wall tie	32526	250 per box	230 mm	5 mm	115 +/- 15 mm	MX 1	25 mm	Steel	DX51
UNI-L wall tie	325320	250 per box	260 mm	3,6 mm	145 +/- 15 mm	MX 1	25 mm	Steel	DX51
UNI-L wall tie	325320	500 per box	260 mm	3,6 mm	145 +/- 15 mm	MX 1	25 mm	Steel	DX51
UNI-L wall tie	32534	250 per box	260 mm	4 mm	145 +/- 15 mm	MX 1	25 mm	Steel	DX51
UNI-L wall tie	32536	250 per box	260 mm	5 mm	145 +/- 15 mm	MX 1	25 mm	Steel	DX51
UNI-L wall tie	325420	250 per box	290 mm	3,6 mm	175 +/- 15 mm	MX 1	25 mm	Steel	DX51
UNI-L wall tie	325420	500 per box	290 mm	3,6 mm	175 +/- 15 mm	MX 1	25 mm	Steel	DX51
UNI-L wall tie	32544	250 per box	290 mm	4 mm	175 +/- 15 mm	MX 1	25 mm	Steel	DX51
UNI-L wall tie	32546	250 per box	290 mm	5 mm	175 +/- 15 mm	MX 1	25 mm	Steel	DX51
UNI-L wall tie	32554	250 per box	320 mm	4 mm	210 +/- 15 mm	MX 1	25 mm	Steel	DX51
UNI-L wall tie	32556	250 per box	320 mm	5 mm	210 +/- 15 mm	MX 1	25 mm	Steel	DX51
UNI-L wall tie	32566	250 per box	350 mm	5 mm	240 +/- 15 mm	MX 1	25 mm	Steel	DX51
UNI-L wall tie	32576	250 per box	400 mm	5 mm	290 +/- 15 mm	-	25 mm	Steel	DX51
