UNI-screw-in wall tie with wood

Length

Cavity Size

Environmental class

MX 1

MX 4

Material

RVS 316

Steel

Steel Quality

DX51

W-Nr.: 1.4401-1.4362

Surface treatment

316 O.G.

Details & dimensions

Article

Article number374394

EAN code8714318133962

Packaging

EAN code8714318133948

Packaging250 per box

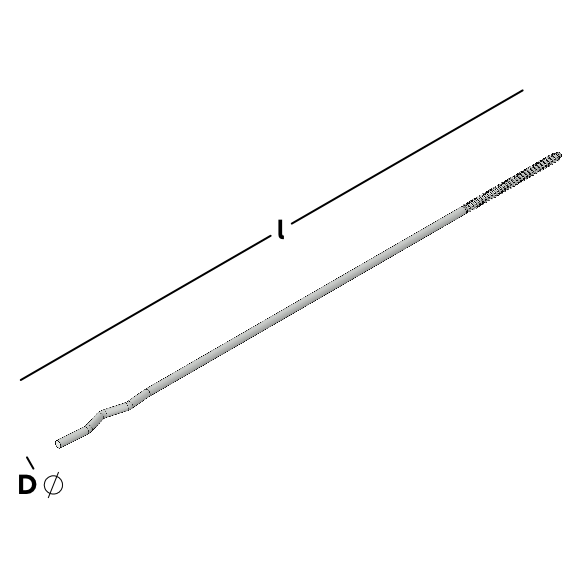

Dimensions

UNI-screw-in wall tie with wood

Length (l)338 mm

Diameter4 mm

Cavity Size233 +/- 15 mm

Environmental classMX 4

Wood Wire4,6x65 Ht

MaterialRVS 316

Steel QualityW-Nr.: 1.4401-1.4362

Downloads

Drawings and models in 2D and 3D

Processing & accessories

1 / 4

View our assembly instructions here that help you step by step to an end result.

Name	Article number	Packaging	Length	Diameter	Cavity Size	Environmental class	Wood Wire	Material	Steel Quality	Surface treatment
UNI-screw-in wall tie with wood	37435	250 per box	160 mm	4 mm	55 +/- 15 mm	MX 4	4,6x32 Ht	RVS 316	W-Nr.: 1.4401-1.4362	316 O.G.
UNI-screw-in wall tie with wood	37436	250 per box	190 mm	4 mm	85 +/- 15 mm	MX 4	4,6x32 Ht	RVS 316	W-Nr.: 1.4401-1.4362	316 O.G.
UNI-screw-in wall tie with wood	37437	250 per box	220 mm	4 mm	115 +/- 15 mm	MX 4	4,6x56 Ht	RVS 316	W-Nr.: 1.4401-1.4362	316 O.G.
UNI-screw-in wall tie with wood	37438	250 per box	250 mm	4 mm	145 +/- 15 mm	MX 4	4,6x56 Ht	RVS 316	W-Nr.: 1.4401-1.4362	316 O.G.
UNI-screw-in wall tie with wood	374385	250 per box	275 mm	4 mm	160 +/- 15 mm	MX 4	4,6x56 Ht	RVS 316	W-Nr.: 1.4401-1.4362	316 O.G.
UNI-screw-in wall tie with wood	37439	250 per box	300 mm	4 mm	195 +/- 15 mm	MX 4	4,6x56 Ht	RVS 316	W-Nr.: 1.4401-1.4362	316 O.G.
UNI-screw-in wall tie with wood	374393	250 per box	325 mm	4 mm	220 +/- 15 mm	MX 4	4,6x56 Ht	RVS 316	W-Nr.: 1.4401-1.4362	316 O.G.
UNI-screw-in wall tie with wood	37440	250 per box	400 mm	4 mm	295 +/- 15 mm	MX 4	4,6x56 Ht	RVS 316	W-Nr.: 1.4401-1.4362	316 O.G.
UNI-screw-in wall tie with wood	374375	250 per box	233 mm	4 mm	128 +/- 15 mm	MX 4	4,6x65 Ht	RVS 316	W-Nr.: 1.4401-1.4362	-
UNI-screw-in wall tie with wood	374383	250 per box	-	-	158 +/- 15 mm	-	-	RVS 316	W-Nr.: 1.4401-1.4362	-
UNI-screw-in wall tie with wood	374388	250 per box	288 mm	4 mm	183 +/- 15 mm	MX 4	4,6x65 Ht	RVS 316	W-Nr.: 1.4401-1.4362	-
UNI-screw-in wall tie with wood	374391	250 per box	313 mm	4 mm	208 +/- 15 mm	MX 4	4,6x65 Ht	RVS 316	W-Nr.: 1.4401-1.4362	-
UNI-screw-in wall tie with wood	374394	250 per box	338 mm	4 mm	233 +/- 15 mm	MX 4	4,6x65 Ht	RVS 316	W-Nr.: 1.4401-1.4362	-
UNI-screw-in wall tie with wood	374395	250 per box	350 mm	4 mm	245 +/- 15 mm	MX 4	4,6x56 Ht	RVS 316	W-Nr.: 1.4401-1.4362	316 O.G.
UNI-screw-in wall tie with wood	374397	250 per box	375 mm	4 mm	270 +/- 15 mm	MX 4	4,6x56 Ht	RVS 316	W-Nr.: 1.4401-1.4362	316 O.G.
UNI-screw-in wall tie with wood	33509	250 per box	160 mm	4 mm	55 +/- 15 mm	MX 1	4,6x32 Ht	Steel	DX51
UNI-screw-in wall tie with wood	33510	250 per box	190 mm	4 mm	85 +/- 15 mm	MX 1	4,6x32 Ht	Steel	DX51
UNI-screw-in wall tie with wood	33511	250 per box	220 mm	4 mm	115 +/- 15 mm	MX 1	4,6x56 Ht	Steel	DX51
UNI-screw-in wall tie with wood	33512	250 per box	250 mm	4 mm	145 +/- 15 mm	MX 1	4,6x56 Ht	Steel	DX51
UNI-screw-in wall tie with wood	335125	250 per box	275 mm	4 mm	160 +/- 15 mm	MX 1	4,6x56 Ht	Steel	DX51
UNI-screw-in wall tie with wood	33513	250 per box	300 mm	4 mm	195 +/- 15 mm	MX 1	4,6x56 Ht	Steel	DX51
UNI-screw-in wall tie with wood	335133	250 per box	325 mm	4 mm	220 +/- 15 mm	MX 1	4,6x56 Ht	Steel	DX51
UNI-screw-in wall tie with wood	335135	250 per box	350 mm	4 mm	245 +/- 15 mm	MX 1	4,6x56 Ht	Steel	DX51
UNI-screw-in wall tie with wood	335137	250 per box	375 mm	4 mm	270 +/- 15 mm	MX 1	4,6x56 Ht	Steel	DX51
UNI-screw-in wall tie with wood	33514	250 per box	400 mm	4 mm	295 +/- 15 mm	MX 1	4,6x56 Ht	Steel	DX51
