Blind wood connection

Two-piece set of milled aluminium blocks that are pushed together to make right-angled wood joints. This is a so-called blind joint as the fastening components are no longer visible after assembly. The system is ideal for "visible" work.

Height

Wood Size width

80 mm

100 mm

Wood Size height

Details & dimensions

Article

Article number09124976

EAN code8714318081270

Packaging

EAN code8714318081287

Packaging4 per box

Length180 mm

Width125 mm

Height80 mm

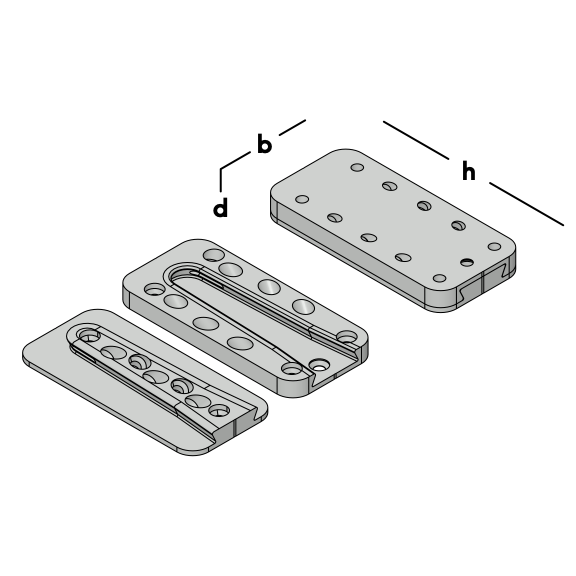

Dimensions

Blind wood connection

Width (b)80 mm

Thickness (d)18 mm

Height (h)170 mm

Wood Size width80 mm

Wood Size height200 mm

TypeL 40

MaterialAL

Processing & accessories

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Width	Thickness	Height	Wood size	Wood Size width	Wood Size height	Type	Material
Blind wood connection	09123883	4 per box	80 mm	18 mm	250 mm	-	100 mm	280 mm	L 60	AL
Blind wood connection	09124976	4 per box	80 mm	18 mm	170 mm	-	80 mm	200 mm	L 40	AL
Blind wood connection	09125261	4 per box	80 mm	18 mm	150 mm	-	100 mm	18 mm	L 30	AL
Blind wood connection	091224975	4 per box	80 mm	18 mm	290 mm	80x290 mm	80 mm	290 mm	-	AL
