Blind wood connection

Two-piece set of milled aluminium blocks that are pushed together to make right-angled wood joints. This is a so-called blind joint as the fastening components are no longer visible after assembly. The system is ideal for "visible" work.

Height

50 mm

110 mm

Wood Size height

71 mm

146/171/196 mm

Details & dimensions

Article

Article number09125265

EAN code8714318081164

Packaging

EAN code8714318081157

Packaging10 per box

Length90 mm

Width75 mm

Height65 mm

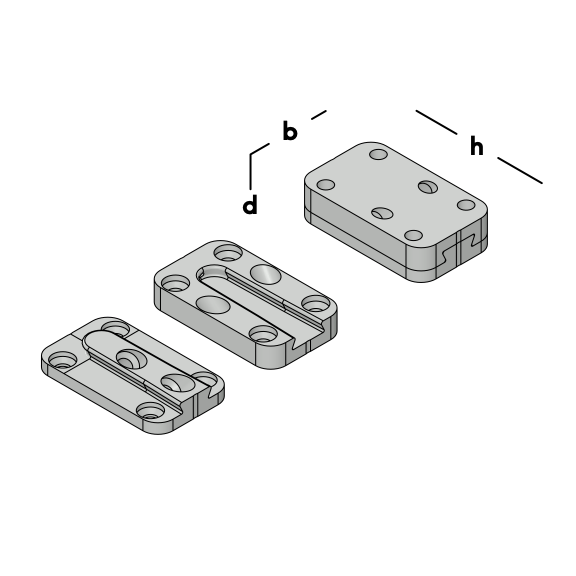

Dimensions

Blind wood connection

Width (b)30 mm

Thickness (d)12 mm

Height (h)50 mm

Wood Size width46 mm

Wood Size height71 mm

TypeXS 5

MaterialAL

Processing & accessories

1 / 3

View our assembly instructions here that help you step by step to an end result.

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Width	Thickness	Height	Wood Size width	Wood Size height	Type	Material
Blind wood connection	09125267	10 per box	30 mm	12 mm	110 mm	46 mm	146/171/196 mm	XS 20	AL
Blind wood connection	09125265	10 per box	30 mm	12 mm	50 mm	46 mm	71 mm	XS 5	AL
