Wall frame hook

A short set section at both ends of the anchoring strip. Tensile forces are transferred from a wooden wall panel to the main supporting structure.

Length

Details & dimensions

Article number04039

EAN code8714318002893

EAN code8714318102739

Packaging10 per bunch

Length1255 mm

Width150 mm

Height30 mm

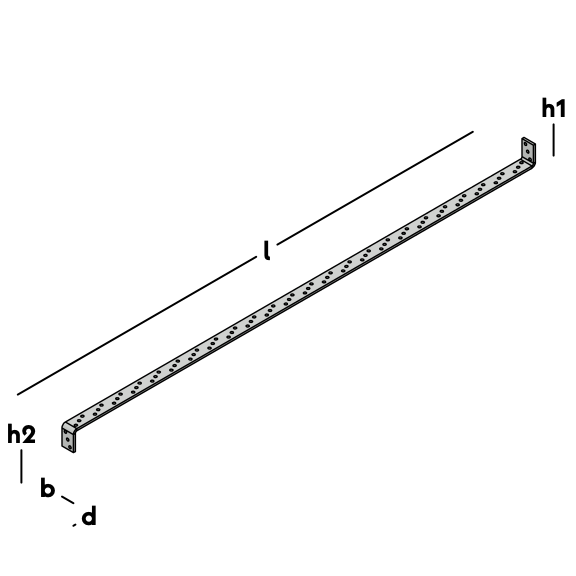

Length (l)1200 mm

Width (b)30 mm

Thickness (d)5 mm

Height 1 (h1)50 mm

Height 2 (h2)50 mm

Hole pattern78/6

MaterialSteel

Steel QualityS235

Surface treatment

Drawings and models in 2D and 3D

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Length	Width	Thickness	Height 1	Height 2	Hole pattern	Material	Steel Quality
Wall frame hook	04029	10 per bunch	600 mm	30 mm	5 mm	50 mm	50 mm	42/6	Steel	S235
Wall frame hook	04033	10 per bunch	800 mm	30 mm	5 mm	50 mm	50 mm	54/6	Steel	S235
Wall frame hook	04035	10 per bunch	900 mm	30 mm	5 mm	50 mm	50 mm	60/6	Steel	S235
Wall frame hook	04037	10 per bunch	1000 mm	30 mm	5 mm	50 mm	50 mm	66/6	Steel	S235
Wall frame hook	04039	10 per bunch	1200 mm	30 mm	5 mm	50 mm	50 mm	78/6	Steel	S235
