Expansion anchor

Sleeve anchor, consisting of a bolt in a metal sleeve with expansion parts. Suitable for attaching anchors with (slot) holes Ø 13mm in (sand lime) brick or concrete.

Length

Details & dimensions

Article

Article number0721860

EAN code8714318055578

Packaging

EAN code8714318055585

Packaging50 per box

Length180 mm

Width90 mm

Height90 mm

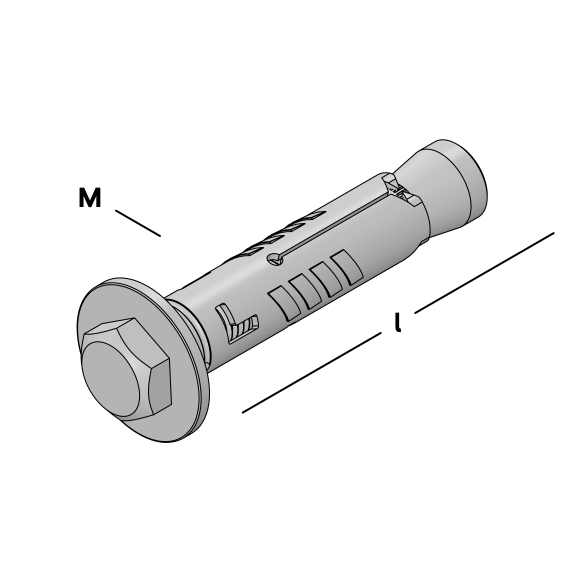

Dimensions

Expansion anchor

Length (l)60 mm

Metric thread (M)8 M

Clamping range0 to 10 mm

DrillingØ 12 at least 60 millimeters

TypeTA M 8-NL

MaterialSteel

Steel QualityDX51

Surface treatment

Downloads

Drawings and models in 2D and 3D

Name	Article number	Packaging	Length	Metric thread	Clamping range	Drilling	Type	Material	Steel Quality
Expansion anchor	072100	50 per box	60 mm	8 M	10 mm	Ø 12 at least 65 millimeters	ZA S 12	Steel	DX51
Expansion anchor	072110	50 per box	105 mm	8 M	50 mm	Ø 12 at least 110 millimeters	ZA S 12	Steel	DX51
Expansion anchor	072140	50 per box	50 mm	8 M	0 mm	Ø 12 at least 55 millimeters	ZA S 12	Steel	DX51
Expansion anchor	0721860	50 per box	60 mm	8 M	0 to 10 mm	Ø 12 at least 60 millimeters	TA M 8-NL	Steel	DX51
Expansion anchor	0721890	25 per box	90 mm	8 M	15 to 45 mm	Ø 12 at least 60 millimeters	TA M 8-NL	Steel	DX51
