Truss clip horizontal

A mounting bracket for fixing a cross-braced beam on top of a purlin, suitable for mounting at the top of the purlin.

Width

112 mm

128 mm

140 mm

Height

Wood Size width

Details & dimensions

Article number07956

EAN code8714318006549

EAN code8714318105983

Packaging25 per box

Length395 mm

Width295 mm

Height270 mm

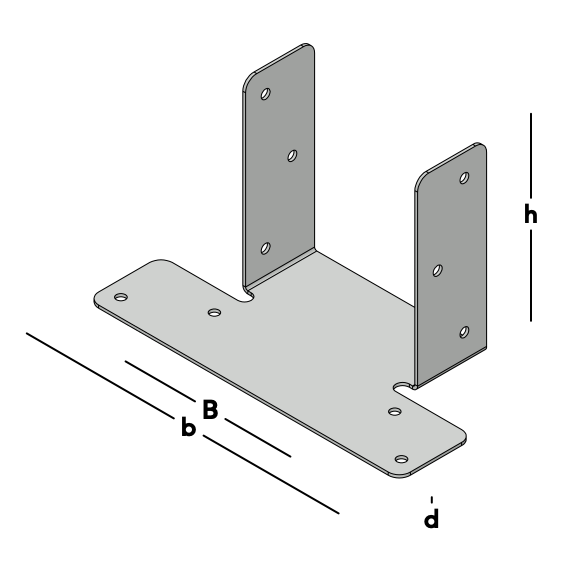

Width (b)140 mm

Thickness (d)1,25 mm

Height (h)83 mm

Hole pattern10/4

Wood Size width75 mm

MaterialSteel

Steel QualityDX51

Surface treatment

Drawings and models in 2D and 3D

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Width	Thickness	Height	Hole pattern	Wood Size width	Material	Steel Quality
Truss clip horizontal	07956	25 per box	140 mm	1,25 mm	83 mm	10/4	75 mm	Steel	DX51
Truss clip horizontal	07955	25 per box	140 mm	1,25 mm	85 mm	10/4	71 mm	Steel	DX51
Truss clip horizontal	07954	25 per box	128 mm	1,25 mm	83 mm	10/4	63 mm	Steel	DX51
Truss clip horizontal	07953	25 per box	128 mm	1,25 mm	85 mm	10/4	59 mm	Steel	DX51
Truss clip horizontal	07952	25 per box	112 mm	1,25 mm	81 mm	10/4	50 mm	Steel	DX51
Truss clip horizontal	07951	25 per box	112 mm	1,25 mm	83 mm	10/4	46 mm	Steel	DX51
Truss clip horizontal	079501	25 per box	112 mm	1,25 mm	87 mm	10/4	38 mm	Steel	DX51
