Anchor butt strip

Heavy mounting strip with repetitive hole pattern to connect wooden parts.

Length

Details & dimensions

Article number01506

EAN code8714318040161

EAN code8714318106133

Packaging10 per bunch

Length600 mm

Width50 mm

Height30 mm

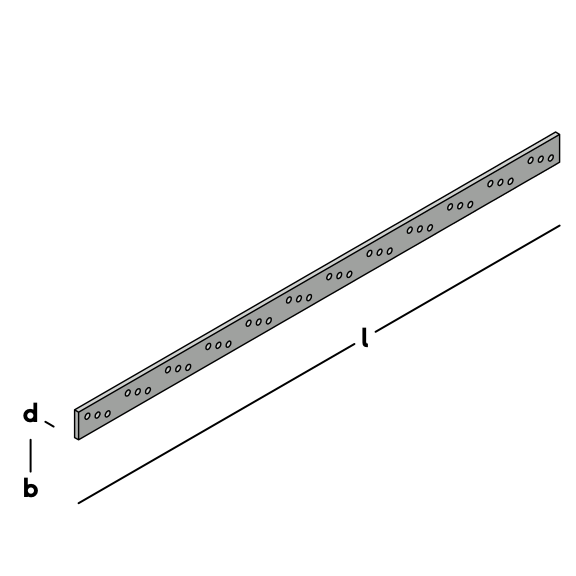

Length (l)600 mm

Width (b)30 mm

Thickness (d)5 mm

Hole pattern36/6

MaterialSteel

Steel QualityS235

Surface treatment

Drawings and models in 2D and 3D

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Length	Width	Thickness	Hole pattern	Material	Steel Quality
Anchor butt strip	01520	1 piece	2000 mm	30 mm	5 mm	120/6	Steel	S235
Anchor butt strip	01512	1 piece	1200 mm	30 mm	5 mm	72/6	Steel	S235
Anchor butt strip	01510	10 per bunch	1000 mm	30 mm	5 mm	60/6	Steel	S235
Anchor butt strip	01508	10 per bunch	800 mm	30 mm	5 mm	48/6	Steel	S235
Anchor butt strip	01506	10 per bunch	600 mm	30 mm	5 mm	36/6	Steel	S235
Anchor butt strip	01504	25 per bunch	400 mm	30 mm	5 mm	24/6	Steel	S235
Anchor butt strip	01502	25 per box	200 mm	30 mm	5 mm	12/6	Steel	S235
