Koppelplaat
Koppelplaat

Fish plate

Mounting plate with fixing holes for connecting wooden parts.

Length
Width
Thickness
Slotted hole
Steel Quality
DX51
S350
Surface treatment
SV
SV-2
ZM

Details & dimensions

Article

Article number01431
EAN code8714318081812

Packaging

EAN code8714318081829
Packaging25 per box
Length330 mm
Width140 mm
Height70 mm

Dimensions

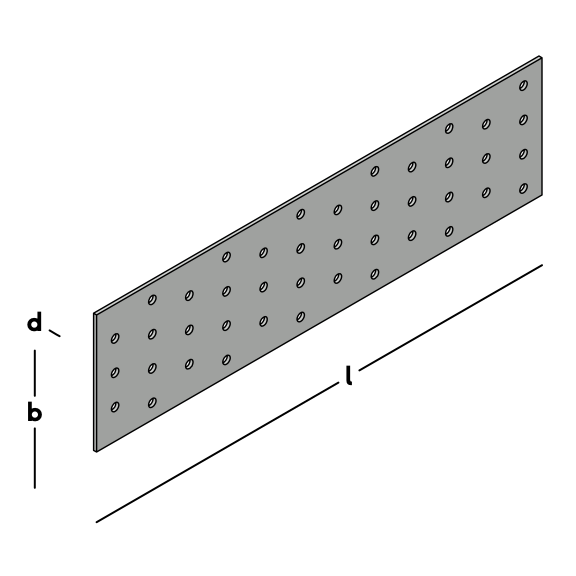

Fish plate

Length (l)80 mm
Width (b)300 mm
Thickness (d)2 mm
Hole pattern42/5
MaterialSteel
Steel QualityDX51
Surface treatmentSV-2

Downloads

Drawings and models in 2D and 3D
