Verbindingsplaat
Verbindingsplaat

Mending plate

Length
Width
Thickness
2 mm
4 mm
Material
RVS 304
Steel
Steel Quality
DX51
S350
Surface treatment
SV
ZM

Details & dimensions

Article

Article number82210
EAN code8714318023133

Packaging

EAN code8714318126902
Packaging100 per box
Length160 mm
Width110 mm
Height115 mm

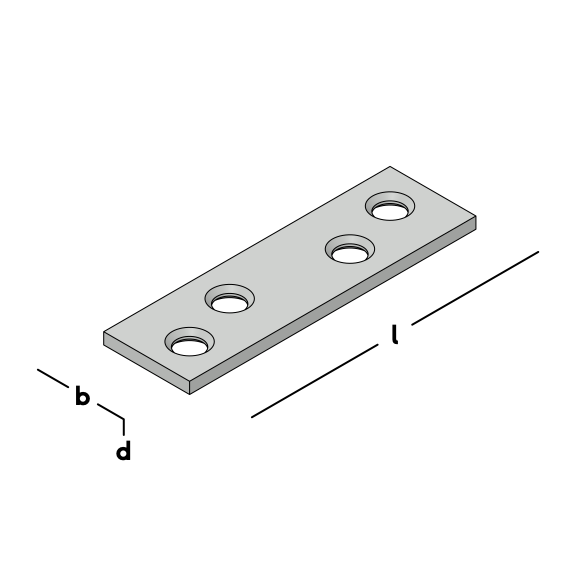

Dimensions

Mending plate

Length (l)50 mm
Width (b)15 mm
Thickness (d)2 mm
Hole pattern4/4,5
MaterialSteel
Steel QualityS350
Surface treatmentZM

Downloads

Drawings and models in 2D and 3D

DWG
DXF
IFC
STP
PDF
