Multinailing gusset

The rectangular coupling plate has one converted side and a regular pattern of reinforcing grooves and nail holes. Suitable for nailing thicker or wider wood parts together flush.

Length

Width

25 mm

38 mm

76 mm

Surface treatment

SV-2

Details & dimensions

Article

Article number07280

EAN code8714318046729

Packaging

EAN code8714318046705

Packaging1200 per box

Length540 mm

Width370 mm

Height245 mm

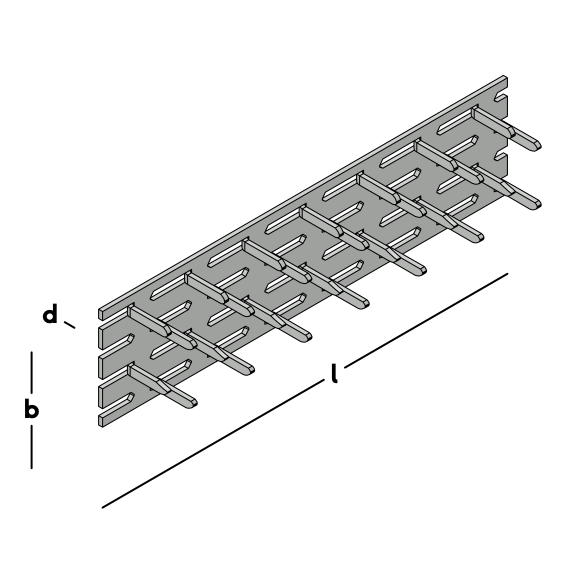

Dimensions

Multinailing gusset

Length (l)101 mm

Width (b)25 mm

Thickness (d)1 mm

MaterialSteel

Steel QualityDX51

Surface treatment

Downloads

Drawings and models in 2D and 3D

Name	Article number	Packaging	Length	Width	Thickness	Material	Steel Quality
Multinailing gusset	072818	300 per box	180 mm	38 mm	1 mm	Steel	DX51
Multinailing gusset	07281	600 per box	127 mm	38 mm	1 mm	Steel	DX51
Multinailing gusset	072805	100 per box	125 mm	25 mm	1 mm	Steel	DX51
Multinailing gusset	07280	1200 per box	101 mm	25 mm	1 mm	Steel	DX51
Multinailing gusset	07280	600 per box	101 mm	25 mm	1 mm	Steel	DX51
Multinailing gusset	07279	320 per box	127 mm	76 mm	1 mm	Steel	DX51
