Ridge piece support

A bracket for mounting the top beam (rider) on the ridge of a pitched roof.

Height

70 mm

75 mm

Details & dimensions

Article number07927

EAN code8714318041847

EAN code8714318105846

Packaging50 per box

Length490 mm

Width290 mm

Height175 mm

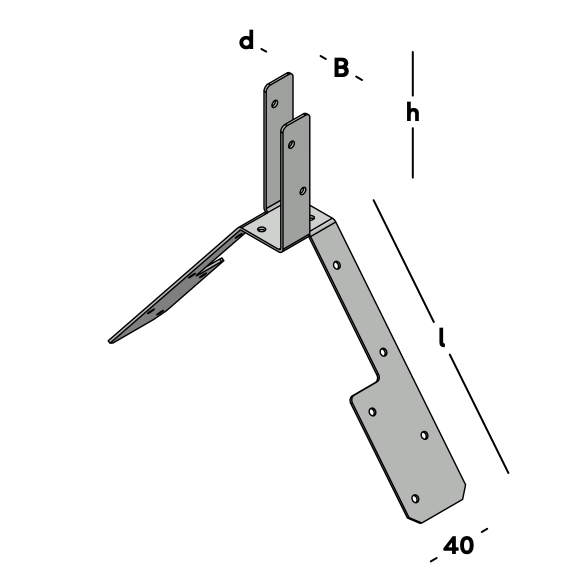

Length (l)150 mm

Thickness (d)1,5 mm

Height (h)75 mm

Hole pattern16/4

Wood size28 mm

Between Size28 mm

MaterialSteel

Steel QualityDX51

Surface treatment

Drawings and models in 2D and 3D

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Length	Thickness	Height	Hole pattern	Wood size	Between Size	Material	Steel Quality
Ridge piece support	07927	50 per box	150 mm	1,5 mm	75 mm	16/4	28 mm	28 mm	Steel	DX51
Ridge piece support	07928	50 per box	150 mm	1,5 mm	70 mm	16/4	32 mm	32 mm	Steel	DX51
Ridge piece support	07929	50 per box	150 mm	1,5 mm	70 mm	16/4	38 mm	38 mm	Steel	DX51
