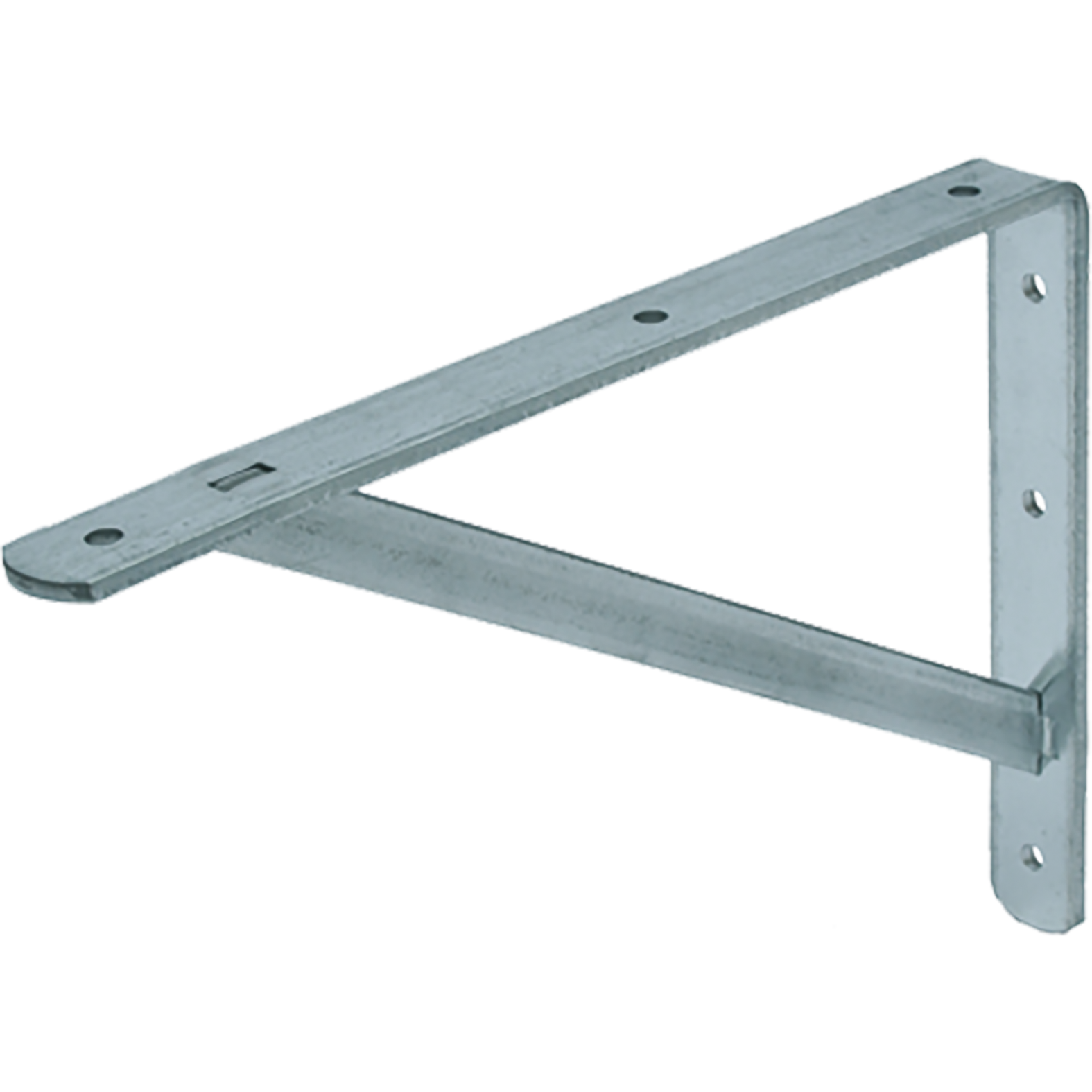

Shelf bracket

Length

Width

20 mm

30 mm

Thickness

4 mm

6 mm

Height

Material

RVS 304

Steel

Steel Quality

S235

S315

W-Nr.: 1.4301

Surface treatment

Details & dimensions

Article

Article number82425

EAN code8714318043940

Packaging

EAN code8714318033941

Packaging10 per box

Length330 mm

Width230 mm

Height130 mm

Dimensions

Shelf bracket

Length (l)300 mm

Width (b)30 mm

Thickness (d)4 mm

Height (h)200 mm

Hole pattern6/7

MaterialSteel

Steel QualityS235

Surface treatment

Downloads

Drawings and models in 2D and 3D

Processing & accessories

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Length	Width	Thickness	Height	Hole pattern	Color	Material	Steel Quality	Surface treatment
Shelf bracket white	824222	10 per box	200 mm	30 mm	4 mm	150 mm	4/7	White	Steel	S235
Shelf bracket	824223	10 per box	200 mm	20 mm	4 mm	150 mm	4/7	-	Steel	S235
Shelf bracket	82425	10 per box	300 mm	30 mm	4 mm	200 mm	6/7	-	Steel	S235
GB	824250	10 per box	300 mm	30 mm	4 mm	200 mm	6/7	Black	Steel	S315
Shelf bracket white	824260	10 per box	300 mm	30 mm	4 mm	200 mm	6/7	White	Steel	S235
	824265	10 per box	300 mm	20 mm	6 mm	200 mm	3/8,5-3/6,5	-	RVS 304	W-Nr.: 1.4301	-
Shelf bracket	82427	10 per box	400 mm	30 mm	4 mm	250 mm	6/7	-	Steel	S235
Shelf bracket	824270	10 per box	400 mm	30 mm	4 mm	250 mm	6/7	Black	Steel	S315
Shelf bracket white	824280	10 per box	400 mm	30 mm	4 mm	250 mm	6/7	White	Steel	S235
	824285	10 per box	400 mm	20 mm	6 mm	250 mm	3/8,5-3/6,5	-	RVS 304	W-Nr.: 1.4301	-
Shelf bracket	82435	10 per box	500 mm	30 mm	4 mm	300 mm	6/7	-	Steel	S235
Shelf bracket white	824360	10 per box	500 mm	30 mm	4 mm	300 mm	6/7	White	Steel	S235
	824365	10 per box	500 mm	30 mm	4 mm	330 mm	3/8-3/5,5	White	Steel	S235	EPW-3
	82437	10 per bag	500 mm	20 mm	6 mm	330 mm	3/8,5-3/6,5	-	RVS 304	W-Nr.: 1.4301	-
