Opwaaianker
Opwaaianker

Storm anchorage

Anchor rod with a short angled bent end for anchoring in a load-bearing (interior) wall. The other end is flattened and fitted with mounting holes for fixing to the wooden structure of a (flat) roof.

Length
600 mm
800 mm

Details & dimensions

Article

Article number13413
EAN code8714318042868

Packaging

EAN code8714318123307
Packaging25 per box
Length840 mm
Width130 mm
Height75 mm

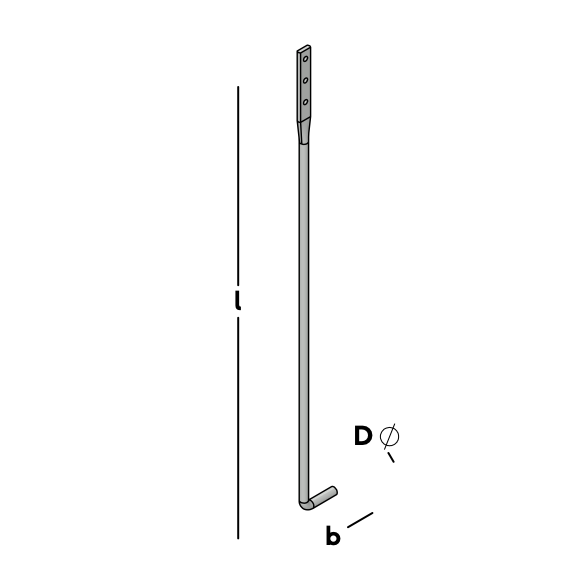

Dimensions

Storm anchorage

Length (l)600 mm
Width (b)50 mm
Diameter10 mm
Hole pattern3/6
MaterialSteel
Steel QualityDX51
Surface treatmentVD

Downloads

Drawings and models in 2D and 3D
