I-Joint

Beam carrier with side flanges, for fixing joists against a wall or against another wooden beam. Mainly used for wooden I-beams. Available for the common head sizes of I-beams.

Width

45 mm

60 mm

90 mm

Height

Wood Size height

Details & dimensions

Article

Article number07888907

EAN code8714318082741

Packaging

EAN code8714318082758

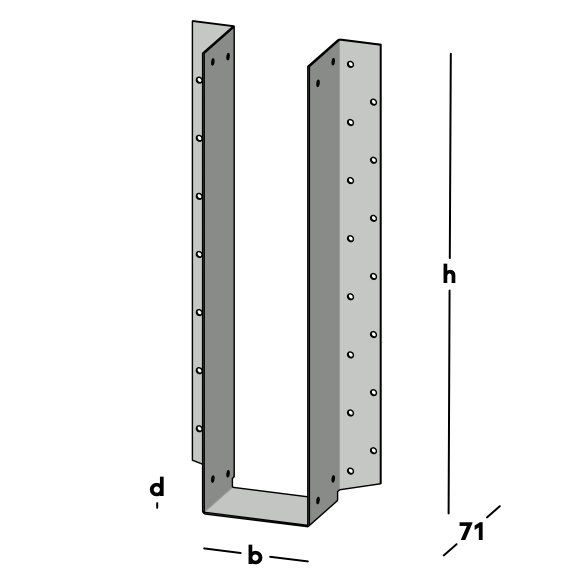

Dimensions

I-Joint

Width (b)90 mm

Thickness (d)1,25 mm

Height (h)400 mm

Hole pattern38/5

Wood Size height400 mm

MaterialSteel

Steel QualityDX51

Surface treatment SV-2

Downloads

Drawings and models in 2D and 3D

Certifications, quality marks and technical sheets

Technical Sheet

Name	Article number	Packaging	Breedte	Dikte	Hoogte	Gatenpatroon	Houtmaat hoogte	Materiaal	Staalkwaliteit
I-ligger	07888452	10 per bundle	45 mm	1,25 mm	200 mm	22/5	200 mm	Staal	DX51
I-ligger	07888453	10 per bundle	45 mm	1,25 mm	220 mm	22/5	220 mm	Staal	DX51
I-ligger	07888454	10 per bundle	45 mm	1,25 mm	240 mm	24/5	240 mm	Staal	DX51
I-ligger	07888455	10 per bundle	45 mm	1,25 mm	300 mm	30/5	300 mm	Staal	DX51
I-ligger	07888456	10 per bundle	45 mm	1,25 mm	360 mm	34/5	360 mm	Staal	DX51
I-ligger	07888457	10 per bundle	45 mm	1,25 mm	400 mm	38/5	400 mm	Staal	DX51
I-ligger	07888602	10 per bundle	60 mm	1,25 mm	200 mm	22/5	200 mm	Staal	DX51
I-ligger	07888603	10 per bundle	60 mm	1,25 mm	220 mm	22/5	220 mm	Staal	DX51
I-ligger	07888604	10 per bundle	60 mm	1,25 mm	240 mm	24/5	240 mm	Staal	DX51
I-ligger	07888605	10 per bundle	60 mm	1,25 mm	300 mm	30/5	300 mm	Staal	DX51
I-ligger	07888606	10 per bundle	60 mm	1,25 mm	360 mm	34/5	360 mm	Staal	DX51
I-ligger	07888607	10 per bundle	60 mm	1,25 mm	400 mm	38/5	400 mm	Staal	DX51
I-ligger	07888902	10 per bundle	90 mm	1,25 mm	200 mm	22/5	200 mm	Staal	DX51
I-ligger	07888903	10 per bundle	90 mm	1,25 mm	220 mm	22/5	220 mm	Staal	DX51
I-ligger	07888904	10 per bundle	90 mm	1,25 mm	240 mm	24/5	240 mm	Staal	DX51
I-ligger	07888905	10 per bundle	90 mm	1,25 mm	300 mm	30/5	300 mm	Staal	DX51
I-ligger	07888906	10 per bundle	90 mm	1,25 mm	360 mm	34/5	360 mm	Staal	DX51
I-ligger	07888907	10 per bundle	90 mm	1,25 mm	400 mm	38/5	400 mm	Staal	DX51
I-ligger met lip	07889455	1 piece	45 mm	1,25 mm	300 mm	30/5	300 mm	Staal	DX51
I-ligger met lip	07889604	1 piece	60 mm	1,25 mm	240 mm	24/5	240 mm	Staal	DX51
I-ligger met lip	07889605	1 piece	60 mm	1,25 mm	300 mm	30/5	300 mm	Staal	DX51
I-ligger met lip	07889607	1 piece	60 mm	1,25 mm	400 mm	24/5	400 mm	Staal	DX51
I-ligger met lip	07889904	1 piece	90 mm	1,25 mm	240 mm	24/5	240 mm	Staal	DX51
I-ligger met lip	07889905	1 piece	90 mm	1,25 mm	300 mm	30/5	300 mm	Staal	DX51
