Trimming support heavy duty

Beam carrier with side flanges, for fixing joists against a wall or against another wooden beam. This beam carrier is also used for making ravelings in floors and roofs. Available for the common head sizes of both planed and unplaned beams.

Height

Wood Size width

Wood Size height

Material

RVS 304

Steel

Surface treatment

SV-2

Details & dimensions

Article

Article number078530

EAN code8714318041625

Packaging

EAN code8714318130664

Packaging20 per box

Length505 mm

Width225 mm

Height175 mm

Dimensions

Trimming support heavy duty

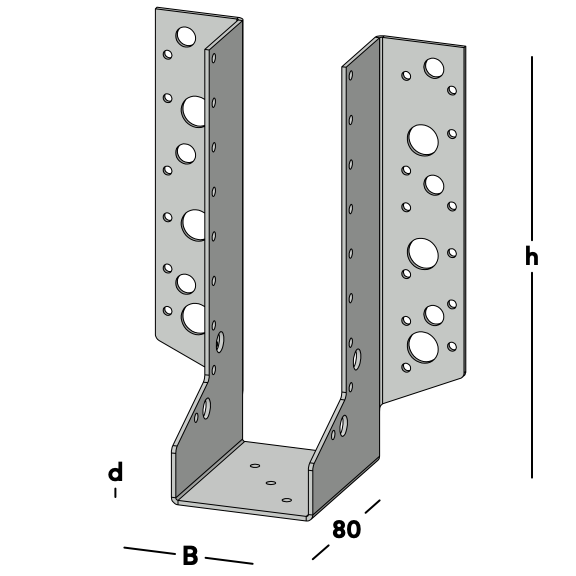

Thickness (d)2 mm

Height (h)190 mm

Hole pattern45/4-10/9-6/14

Wood Size width59 mm

Wood Size height196 mm

Type440

MaterialSteel

Steel QualityDX51

Surface treatment SV-2

Downloads

Drawings and models in 2D and 3D

Processing & accessories

1 / 4

View our assembly instructions here that help you step by step to an end result.

Name	Article number	Packaging	Thickness	Height	Hole pattern	Wood size	Wood Size width	Wood Size height	Between Size	Type	Material	Steel Quality
Trimming support heavy duty	0781202	20 per box	2 mm	85 mm	17/4-6/9-2/14	-	50 mm	100 mm	-	220	Steel	DX51
Trimming support heavy duty	078140	50 per box	2 mm	78 mm	17/4-6/9-2/14	-	63 mm	100 mm	-	heavy duty 220	Steel	DX51
Trimming support heavy duty	0782002	20 per box	2 mm	121 mm	25/4-6/9-4/14	-	38 mm	125 mm	-	280	Steel	DX51
Trimming support heavy duty	078110	20 per box	2 mm	87 mm	17/4-6/9-2/14	-	46 mm	96 mm	-	220	Steel	DX51
Trimming support heavy duty	078120	20 per box	2 mm	85 mm	17/4-6/9-2/14	-	50 mm	100 mm	-	220	Steel	DX51
Trimming support heavy duty	078200	20 per box	2 mm	121 mm	25/4-6/9-4/14	-	38 mm	125 mm	-	280	Steel	DX51
Trimming support heavy duty	078203	20 per box	2 mm	171 mm	37/4-8/9-6/14	-	38 mm	184 mm	-	380	Steel	DX51
Trimming support heavy duty	078205	20 per box	2 mm	201 mm	45/4-10/9-6/14	-	38 mm	235 mm	-	440	Steel	DX51
Trimming support heavy duty	078207	20 per box	2 mm	231 mm	51/4-10/9-8/14	-	38 mm	235 mm	-	500	Steel	DX51
Trimming support heavy duty	078210	20 per box	2 mm	117 mm	25/4-6/9-4/14	-	46 mm	121 mm	-	280	Steel	DX51
Trimming support heavy duty	078220	20 per box	2 mm	115 mm	25/4-6/9-4/14	-	50 mm	125 mm	-	280	Steel	DX51
Trimming support heavy duty	078230	20 per box	2 mm	110 mm	25/4-6/9-4/14	-	59 mm	121 mm	-	280	Steel	DX51
Trimming support heavy duty	078240	20 per box	2 mm	108 mm	25/4-6/9-4/14	-	63 mm	125 mm	-	280	Steel	DX51
Trimming support heavy duty	078310	20 per box	2 mm	144 mm	33/4-8/9-4/14	-	46 mm	146 mm	-	335	Steel	DX51
Trimming support heavy duty	078320	20 per box	2 mm	143 mm	33/4-8/9-4/14	-	50 mm	150 mm	-	335	Steel	DX51
Trimming support heavy duty	078330	20 per box	2 mm	138 mm	33/4-8/9-4/14	-	59 mm	146-156 mm	-	335	Steel	DX51
Trimming support heavy duty	078340	20 per box	2 mm	136 mm	33/4-8/9-4/14	-	63 mm	150 mm	-	335	Steel	DX51
Trimming support heavy duty	078350	20 per box	2 mm	132 mm	33/4-8/9-4/14	-	71 mm	146 mm	-	335	Steel	DX51
Trimming support heavy duty	078360	20 per box	2 mm	130 mm	33/4-8/9-4/14	-	75 mm	150 mm	-	335	Steel	DX51
Trimming support heavy duty	078410	20 per box	2 mm	167 mm	37/4-8/9-6/14	-	46 mm	171-196 mm	-	380	Steel	DX51
Trimming support heavy duty	078420	20 per box	2 mm	165 mm	37/4-8/9-6/14	-	50 mm	175 mm	-	380	Steel	DX51
Trimming support heavy duty	078430	20 per box	2 mm	160 mm	37/4-8/9-6/14	-	59 mm	171 mm	-	380	Steel	DX51
Trimming support heavy duty	078440	20 per box	2 mm	158 mm	37/4-8/9-6/14	-	63 mm	160-175 mm	-	380	Steel	DX51
Trimming support heavy duty	078450	20 per box	2 mm	154 mm	37/4-8/9-6/14	-	71 mm	171 mm	-	380	Steel	DX51
Trimming support heavy duty	078460	20 per box	2 mm	152 mm	37/4-8/9-6/14	-	75 mm	175 mm	-	380	Steel	DX51
Trimming support heavy duty	078530	20 per box	2 mm	190 mm	45/4-10/9-6/14	-	59 mm	196 mm	-	440	Steel	DX51
Trimming support heavy duty	078540	20 per box	2 mm	188 mm	45/4-10/9-6/14	-	63 mm	200 mm	-	440	Steel	DX51
Trimming support heavy duty	078550	20 per box	2 mm	184 mm	45/4-10/9-6/14	-	71 mm	196 mm	-	440	Steel	DX51
Trimming support heavy duty	078560	20 per box	2 mm	182 mm	45/4-10/9-6/14	-	75 mm	200 mm	-	440	Steel	DX51
Trimming support heavy duty	078570	20 per box	2 mm	172 mm	45/4-10/9-6/14	-	96 mm	196 mm	-	440	Steel	DX51
Trimming support heavy duty	078580	20 per box	2 mm	170 mm	45/4-10/9-6/14	-	100 mm	200 mm	-	440	Steel	DX51
Trimming support heavy duty	078650	20 per box	2 mm	214 mm	51/4-10/9-8/14	-	71 mm	221-246 mm	-	500	Steel	DX51
Trimming support heavy duty	078660	20 per box	2 mm	212 mm	51/4-10/9-8/14	-	75 mm	225 mm	-	500	Steel	DX51
Trimming support heavy duty	078670	20 per box	2 mm	202 mm	51/4-10/9-8/14	-	96 mm	221 mm	-	500	Steel	DX51
Trimming support heavy duty	078750	20 per box	2 mm	245 mm	59/4-10/9-8/14	-	71 mm	271 mm	-	560	Steel	DX51
Trimming support heavy duty	0783102	20 per box	2 mm	144 mm	33/4-8/9-4/14	-	46 mm	146 mm	-	335	Steel	DX51
Sabot de poutre lourd	0783202	20 per box	2 mm	143 mm	33/4-8/9-4/14	-	50 mm	150 mm	-	335	Steel	DX51
Trimming support heavy duty	078331	20 per box	2 mm	138 mm	33/4-8/9-4/14	-	59 mm	146-156 mm	-	335	Steel	DX51
Trimming support heavy duty	0784402	20 per box	2 mm	158 mm	37/4-8/9-6/14	-	63 mm	160-175 mm	-	380	Steel	DX51
Trimming support heavy duty	078451	20 per box	2 mm	154 mm	37/4-8/9-6/14	-	71 mm	171 mm	-	380	Steel	DX51
Trimming support heavy duty	0784602	20 per box	2 mm	152 mm	37/4-8/9-6/14	-	75 mm	175 mm	-	380	Steel	DX51
Trimming support heavy duty	0785502	20	2 mm	184 mm	45/4-10/9-6/14	-	71 mm	196 mm	-	440	Steel	DX51
Trimming support heavy duty	0785602	20	2 mm	182 mm	45/4-10/9-6/14	-	75 mm	200 mm	-	440	Steel	DX51
Trimming support heavy duty	07810	1 piece	2 mm	-	17/4-6/9-2/14	-	-	-	-	220	Steel	DX51
Trimming support heavy duty	07820	1 piece	2 mm	-	25/4-6/9-4/14	-	-	-	-	280	Steel	DX51
Trimming support heavy duty	078030	1 piece	2 mm	-	-	-	-	-	-	315	RVS 304	-
Trimming support heavy duty	078040	1 piece	2 mm	-	-	-	-	-	-	415	RVS 304	-
Trimming support heavy duty	07863	1 piece	2 mm	220 mm	51/4-10/9-8/14	59x221 mm	59 mm	-	59 mm	heavy duty 500	Steel	DX51
Trimming support heavy duty	07864	1 piece	2 mm	218 mm	51/4-10/9-8/14	63x225 mm	63 mm	-	63 mm	heavy duty 500	Steel	DX51
Trimming support heavy duty	07876	1 piece	2 mm	242 mm	59/4-10/9-8/14	75x250 mm	75 mm	-	75 mm	heavy duty 560	Steel	DX51
Trimming support heavy duty	07886	1 piece	2 mm	272 mm	71/4-4/9-6/14	75x275 mm	75 mm	-	75 mm	heavy duty 620	Steel	DX51
Trimming support heavy duty	078770	1 piece	2 mm	232 mm	59/4-10/9-8/14	96x246 mm	96 mm	-	96 mm	heavy duty 560	Steel	DX51
Trimming support heavy duty	078780	1 piece	2 mm	230 mm	59/4-10/9-8/14	100x250 mm	100 mm	-	100 mm	heavy duty 560	Steel	DX51
Trimming support heavy duty	078910	50 per box	2 mm	80 mm	21/4,5-6/9-2/14	60x100 mm	60 mm	-	60 mm	A	Steel	DX51
Trimming support heavy duty	078915	50 per box	2 mm	100 mm	29/4,5-6/9-2/14	-	80 mm	-	80 mm	A	Steel	DX51
Trimming support heavy duty	078920	50 per box	2 mm	140 mm	37/4,5-8/9-6/14	100x140 mm	100 mm	-	100 mm	A	Steel	DX51
Trimming support heavy duty	078925	25 per box	2 mm	160 mm	45/4,5-4/9-4/14	120x160 mm	120 mm	-	120 mm	A	Steel	DX51
Trimming support heavy duty	078930	25 per box	2 mm	180 mm	53/4,5-4/9-6/14	140x180 mm	140 mm	-	140 mm	A	Steel	DX51
Trimming support heavy duty	07868	1 piece	2 mm	200 mm	51/4-10/9-8/14	100x225 mm	100 mm	-	100 mm	heavy duty 500	Steel	DX51
Trimming support heavy duty	078209	20 per box	2 mm	261 mm	59/4-10/9-8/14	38x286 mm	38 mm	286 mm	-	560	Steel	DX51
Trimming support heavy duty	0786502	40 per box	2 mm	214 mm	51/4-10/9-8/14	-	71 mm	221-246 mm	-	500	Steel	DX51
