Floor HSB strip with lip

Heavy mounting strip for anchoring (adjustable) window frames, facades and (facade) elements to the floor structure. Equipped with a vertically welded lip that serves as a stop and directly allows the element to be fastened.

Length 2

Slotted hole

13x40 mm

40/13 mm

Surface treatment

EV-2

Details & dimensions

Article

Article number073840

EAN code8714318076481

Packaging

EAN code8714318077754

Packaging15 per box

Length320 mm

Width230 mm

Height170 mm

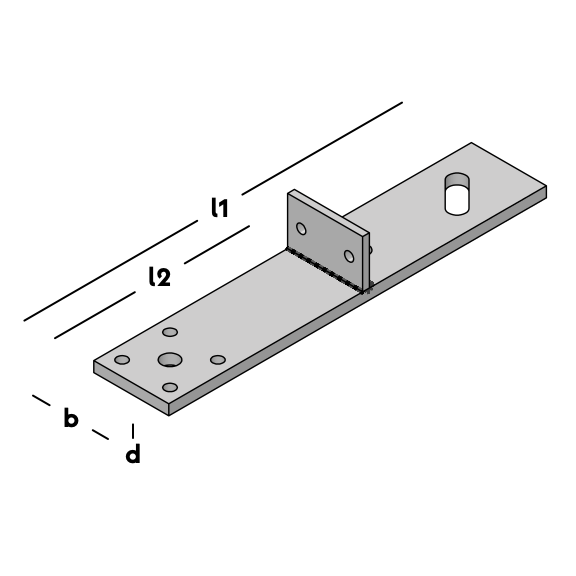

Dimensions

Floor HSB strip with lip

Length 1 (l1)300 mm

Length 2 (l2)150 mm

Width (b)60 mm

Thickness (d)8 mm

Slotted hole40/13 mm

Hole pattern6/8-2/13

Lip size60x37 mm

MaterialSteel

Steel QualityS315

Surface treatment

Downloads

Drawings and models in 2D and 3D

Processing & accessories

1 / 5

View our assembly instructions here that help you step by step to an end result.

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Lengte 1	Lengte 2	Breedte	Dikte	Slobgaten	Gatenpatroon	Lip maat	Materiaal	Staalkwaliteit
Vloer HSB-strip met lip	073840	15 per box	300 mm	150 mm	60 mm	8 mm	13x40 mm	2/7-4/8-2/13	60x37 mm	Staal	S315
Vloer HSB-strip met lip	073841	15 per box	300 mm	75 mm	60 mm	8 mm	13x40 mm	2/7-4/8-2/13	60x37 mm	Staal	S315
Vloer HSB-strip met lip	073842	15 per box	300 mm	200 mm	60 mm	8 mm	13x40 mm	2/7-4/8-2/13	60x37 mm	Staal	S315
Vloer HSB-strip met lip	0738415	15 per box	300 mm	120 mm	60 mm	8 mm	13x40 mm	2/7-4/8-2/13	60x37 mm	Staal	S315
Vloer HSB-strip met lip	0738405	15 per box	300 mm	50 mm	60 mm	8 mm	13x40 mm	2/7-4/8-2/13	60x37 mm	Staal	S315
