Expansion anchor

Sleeve anchor, consisting of a bolt in a metal sleeve with expansion parts. Anchors with 13 mm (slot) holes can be installed in (sand-lime) brick or concrete.

Length

Details & dimensions

Article

Article number072110

EAN code8714318003067

Packaging

EAN code8714318102906

Packaging50 per box

Length200 mm

Width150 mm

Height100 mm

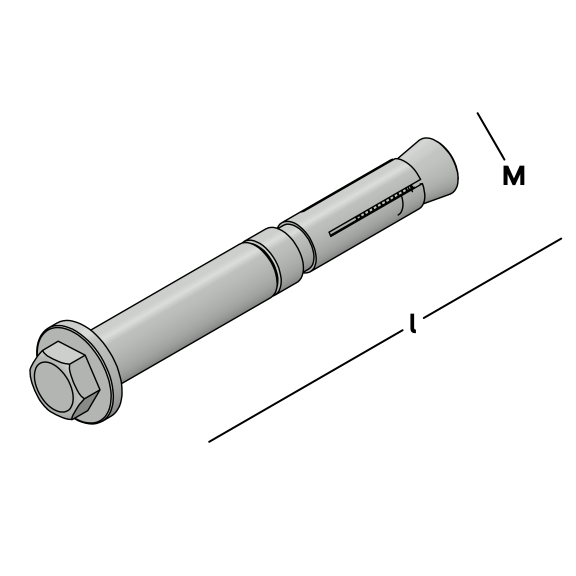

Dimensions

Expansion anchor

Length (l)105 mm

Metric thread (m)8 M

Clamping range50 mm

DrillingØ 12 at least 110 millimeters

TypeZA S 12

MaterialSteel

Steel QualityDX51

Surface treatment

Name	Article number	Packaging	Length	Metric thread	Clamping range	Drilling	Type	Material	Steel Quality
Expansion anchor	072100	50 per box	60 mm	8 M	10 mm	Ø 12 at least 65 millimeters	ZA S 12	Steel	DX51
Expansion anchor	072110	50 per box	105 mm	8 M	50 mm	Ø 12 at least 110 millimeters	ZA S 12	Steel	DX51
Expansion anchor	072140	50 per box	50 mm	8 M	0 mm	Ø 12 at least 55 millimeters	ZA S 12	Steel	DX51
Expansion anchor	0721860	50 per box	60 mm	8 M	0 to 10 mm	Ø 12 at least 60 millimeters	TA M 8-NL	Steel	DX51
Expansion anchor	0721890	25 per box	90 mm	8 M	15 to 45 mm	Ø 12 at least 60 millimeters	TA M 8-NL	Steel	DX51
