Expansion anchor

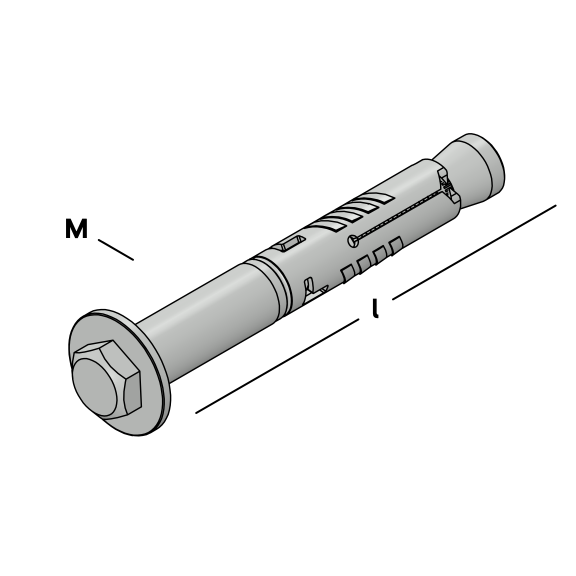

Sleeve anchor, consisting of a bolt in a metal sleeve with expansion parts. Suitable for attaching anchors with (slot) holes Ø 13mm in (sand lime) brick or concrete.

Length

Details & dimensions

Article

Article number0721890

EAN code8714318055592

Packaging

EAN code8714318055608

Packaging25 per box

Length154 mm

Width106 mm

Height108 mm

Dimensions

Expansion anchor

Length90 mm

Metric thread8 M

Clamping range15 to 45 mm

DrillingØ 12 at least 60 millimeters

TypeTA M 8-NL

MaterialSteel

Steel QualityDX51

Surface treatment

Name	Article number	Packaging	Length	Metric thread	Clamping range	Drilling	Type	Material	Steel Quality
Expansion anchor	072100	50 per box	60 mm	8 M	10 mm	Ø 12 at least 65 millimeters	ZA S 12	Steel	DX51
Expansion anchor	072110	50 per box	105 mm	8 M	50 mm	Ø 12 at least 110 millimeters	ZA S 12	Steel	DX51
Expansion anchor	072140	50 per box	50 mm	8 M	0 mm	Ø 12 at least 55 millimeters	ZA S 12	Steel	DX51
Expansion anchor	0721860	50 per box	60 mm	8 M	0 to 10 mm	Ø 12 at least 60 millimeters	TA M 8-NL	Steel	DX51
Expansion anchor	0721890	25 per box	90 mm	8 M	15 to 45 mm	Ø 12 at least 60 millimeters	TA M 8-NL	Steel	DX51
