Floor-frame strip

Heavy mounting strip for anchoring (adjustable) window frames, facades and (facade) elements to the floor structure. Equipped with a vertically welded lip that serves as a stop and directly allows the element to be fastened.

Length 1

Length 2

Width

60 mm

100 mm

Thickness

6 mm

8 mm

10 mm

Steel Quality

DX51

S315

Surface treatment

Details & dimensions

Article

Article number073862

EAN code8714318079826

Packaging

EAN code8714318079833

Packaging10 per bunch

Length325 mm

Width120 mm

Height100 mm

Dimensions

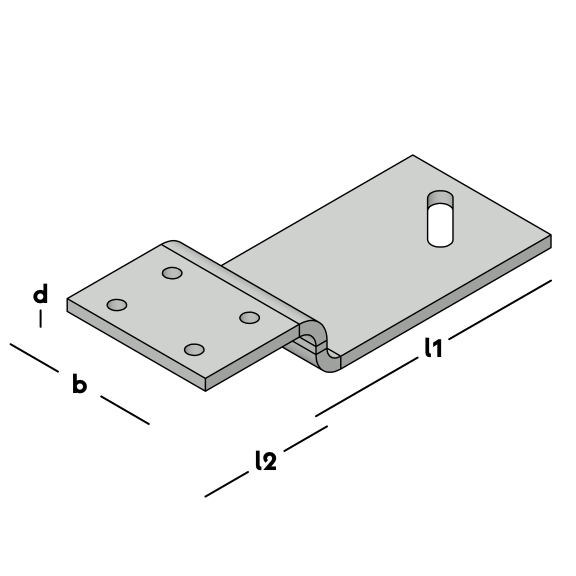

Floor-frame strip

Length 1 (l1)170 mm

Length 2 (l2)80 mm

Width (b)100 mm

Thickness (d)8 mm

Hole pattern4/10

Slotted holes diagonal50x13 mm

MaterialSteel

Steel QualityS315

Surface treatment

Downloads

Drawings and models in 2D and 3D

Name	Article number	Packaging	Length 1	Length 2	Width	Thickness	Slotted hole	Hole pattern	Slotted holes diagonal	Bend	Material	Steel Quality
Floor-frame strip	073600	10 per bunch	250 mm	-	60 mm	6 mm	40x13 mm	4/8-2/13	-	-	Steel	DX51
Floor-frame strip	073610	10 per bunch	170 mm	75 mm	60 mm	6 mm	40x13 mm	4/8-2/13	-	10 mm	Steel	DX51
Floor-frame strip	073625	10 per bunch	170 mm	75 mm	60 mm	6 mm	40x13 mm	4/8-1/13	-	25 mm	Steel	DX51
Floor-frame strip	073635	10 per bunch	170 mm	75 mm	60 mm	6 mm	40x13 mm	4/8-1/13	-	35 mm	Steel	DX51
Floor-frame strip	073660	10 per bunch	170 mm	75 mm	60 mm	6 mm	40x13 mm	4/8-1/13	-	60 mm	Steel	DX51
Floor-frame strip	073710	10 per bunch	170 mm	75 mm	60 mm	8 mm	40x13 mm	4/8-2/13	-	10 mm	Steel	S315
Floor-frame strip	073700	10 per bunch	250 mm	-	60 mm	8 mm	40x13 mm	4/8-2/13	-	-	Steel	S315
Floor-frame strip	073725	10 per bunch	170 mm	75 mm	60 mm	8 mm	40x13 mm	4/8-1/13	-	25 mm	Steel	S315
Floor-frame strip	073735	10 per bunch	170 mm	75 mm	60 mm	8 mm	40x13 mm	4/8-1/13	-	35 mm	Steel	S315
Floor-frame strip	073760	10 per bunch	170 mm	75 mm	60 mm	8 mm	40x13 mm	4/8-1/13	-	60 mm	Steel	S315
Floor-frame strip	073800	10 per bunch	250 mm	-	60 mm	8 mm	40x13 mm	4/8-2/13	-	-	Steel	S315
Floor-frame strip	073810	10 per bunch	170 mm	75 mm	60 mm	8 mm	40x13 mm	4/8-2/13	-	10 mm	Steel	S315
Floor-frame strip	073811	10 per bunch	170 mm	110 mm	60 mm	8 mm	40x13 mm	4/8-1/13	-	10 mm	Steel	S315
Floor-frame strip	073825	10 per bunch	170 mm	75 mm	60 mm	8 mm	40x13 mm	4/8-1/13	-	25 mm	Steel	S315
Floor-frame strip	073826	10 per bunch	155 mm	25 mm	60 mm	8 mm	40x13 mm	4/8-1/13	-	25 mm	Steel	S315
Floor-frame strip	073835	10 per bunch	170 mm	75 mm	60 mm	8 mm	40x13 mm	4/8-1/13	-	35 mm	Steel	S315
Floor-frame strip	073836	10 per bunch	145 mm	110 mm	60 mm	8 mm	40x13 mm	4/8-1/13	-	35 mm	Steel	S315
Floor-frame strip	073837	10 per bunch	155 mm	110 mm	60 mm	8 mm	40x13 mm	4/8-2/13	-	-	Steel	S315
Floor-frame strip	073860	10 per bunch	170 mm	75 mm	60 mm	8 mm	40x13 mm	4/8-1/13	-	60 mm	Steel	S315
Floor-frame strip	073861	10 per bunch	205 mm	110 mm	60 mm	8 mm	40x13 mm	4/8-1/13	-	60 mm	Steel	S315
Floor-frame strip	073862	10 per bunch	170 mm	80 mm	100 mm	8 mm	-	4/10	50x13 mm	-	Steel	S315
Floor-frame strip	073863	5 per bunch	260 mm	140 mm	100 mm	10 mm	-	4/11	50x13 mm	-	Steel	S315
Floor-frame strip	073886	10 per bunch	180 mm	85 mm	100 mm	8 mm	40x13 mm	4/8-2/13	-	-	Steel	S315
