Floor-frame strip

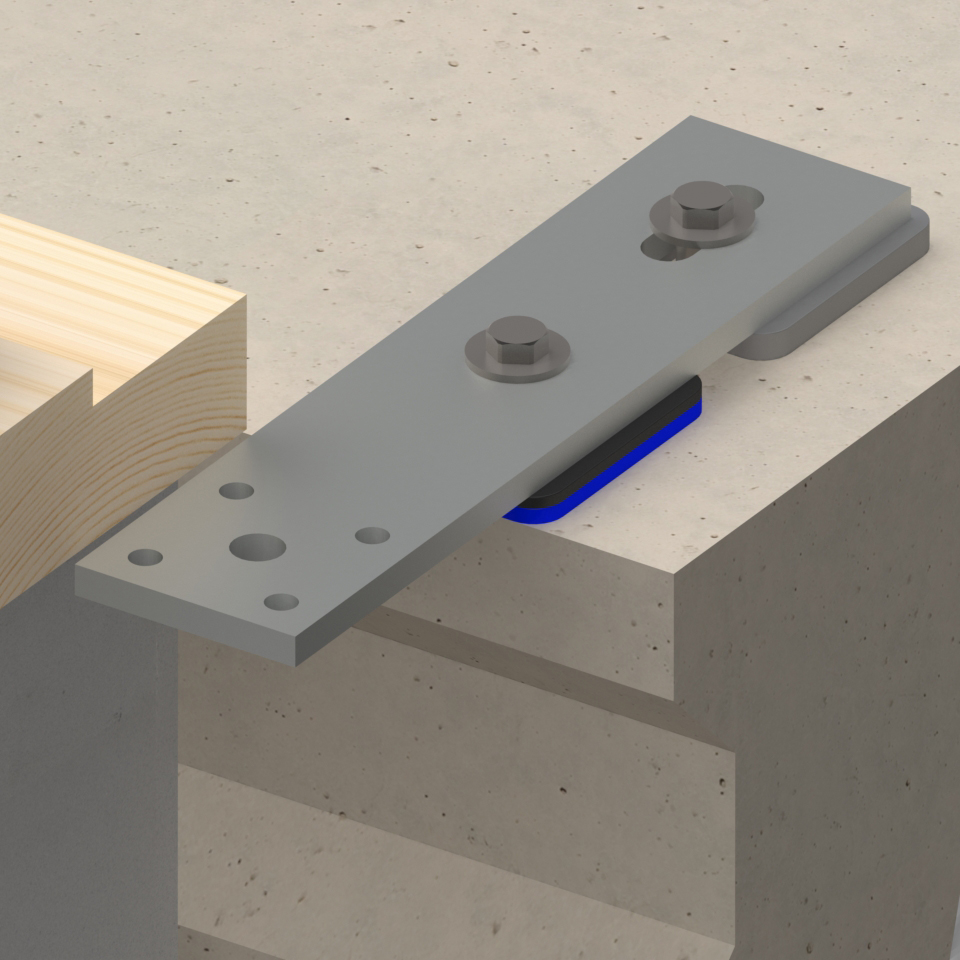

Heavy mounting strip that serves as lower lintel anchoring of (assembly) window frames, facades and (facade) elements to the floor construction. Floor frame strips are available in a flat version or with an offset of 10, 25, 35, 60 or 85 mm. In combination with adjustable height pressure plates.

Length 1
Length 2
Width
60 mm
100 mm
Thickness
6 mm
8 mm
10 mm
Slotted hole
13x40 mm
13x50 diag. mm
40x13 mm
Steel Quality
DX51
S315
Surface treatment

Details & dimensions

Article

Article number073700
EAN code8714318054014

Packaging

EAN code8714318054021
Packaging10 per bunch
Length250 mm
Width80 mm
Height60 mm

Dimensions

Floor-frame strip

Length 1 (l1)250 mm
Width (b)60 mm
Thickness (d)8 mm
Slotted hole40x13 mm
Hole pattern4/8-2/13
MaterialSteel
Steel QualityS315
Surface treatmentEV
