Angle bracket 100°

A corner set at an angle of less than 100° to anchor a drain-milled top lintel of a window frame to the facade structure.

Length 1

Length 2

Width

60 mm

72 mm

Thickness

Slotted hole

Steel Quality

DX51

S350

Surface treatment

Details & dimensions

Article

Article number07250

EAN code8714318998882

Packaging

EAN code8714318998899

Packaging100 per box

Length270 mm

Width220 mm

Height70 mm

Dimensions

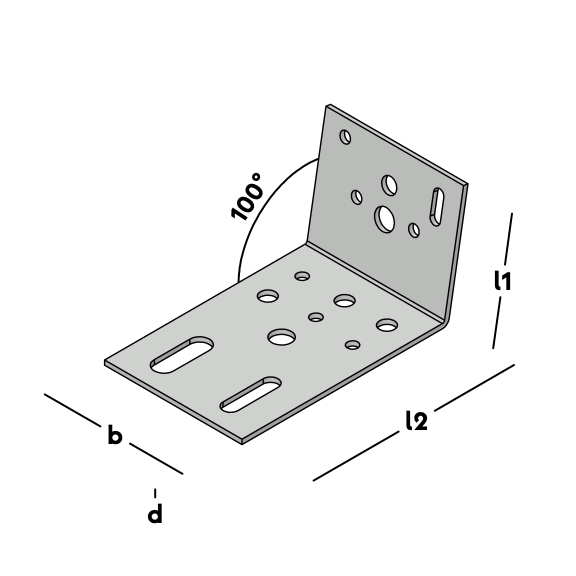

Angle bracket 100°

Length 1 (l1)50 mm

Length 2 (l2)50 mm

Width (b)60 mm

Thickness (d)2 mm

Slotted hole12x4-24x6-24x8,5 mm

Hole pattern6/4-4/6-2/9

Degrees ° angle-put100 °

MaterialSteel

Steel QualityDX51

Surface treatment

Downloads

Drawings and models in 2D and 3D

Processing & accessories

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Length 1	Length 2	Width	Thickness	Slotted hole	Hole pattern	Degrees ° angle-put	Material	Steel Quality
Angle bracket 100°	072360	100 per box	50 mm	50 mm	60 mm	2,5 mm	30x9-30x12 mm	12/4	100 °	Steel	DX51
Angle bracket 100°	07250	100 per box	50 mm	50 mm	60 mm	2 mm	12x4-24x6-24x8,5 mm	6/4-4/6-2/9	100 °	Steel	DX51
Angle bracket 100°	072500	100 per box	55 mm	85 mm	60 mm	2,5 mm	32x9-50x9 mm	10/5	100 °	Steel	S350
Angle bracket 100°	072502	100 per box	60 mm	80 mm	60 mm	2,5 mm	32x13-50x13 mm	8/4,5	100 °	Steel	S350
Angle bracket 100°	072503	100 per box	60 mm	60 mm	60 mm	2 mm	2/30x11 mm	10/4,5-4/6,5	100 °	Steel	DX51
Concrete angle bracket 100°	072505	30 per bag	60 mm	100 mm	60 mm	6 mm	65x13 mm	2/9-1/11	100 °	Steel	DX51
Angle bracket 100°	072384	30 per box	75 mm	100 mm	72 mm	4 mm	60x13-30x13 mm	8/7-6/9	100 °	Steel	S350
Angle bracket 100°	072221	100 per box	90 mm	90 mm	60 mm	2,5 mm	30x11 mm	10/4-6/6-4/9-1/11	100 °	Steel	DX51
