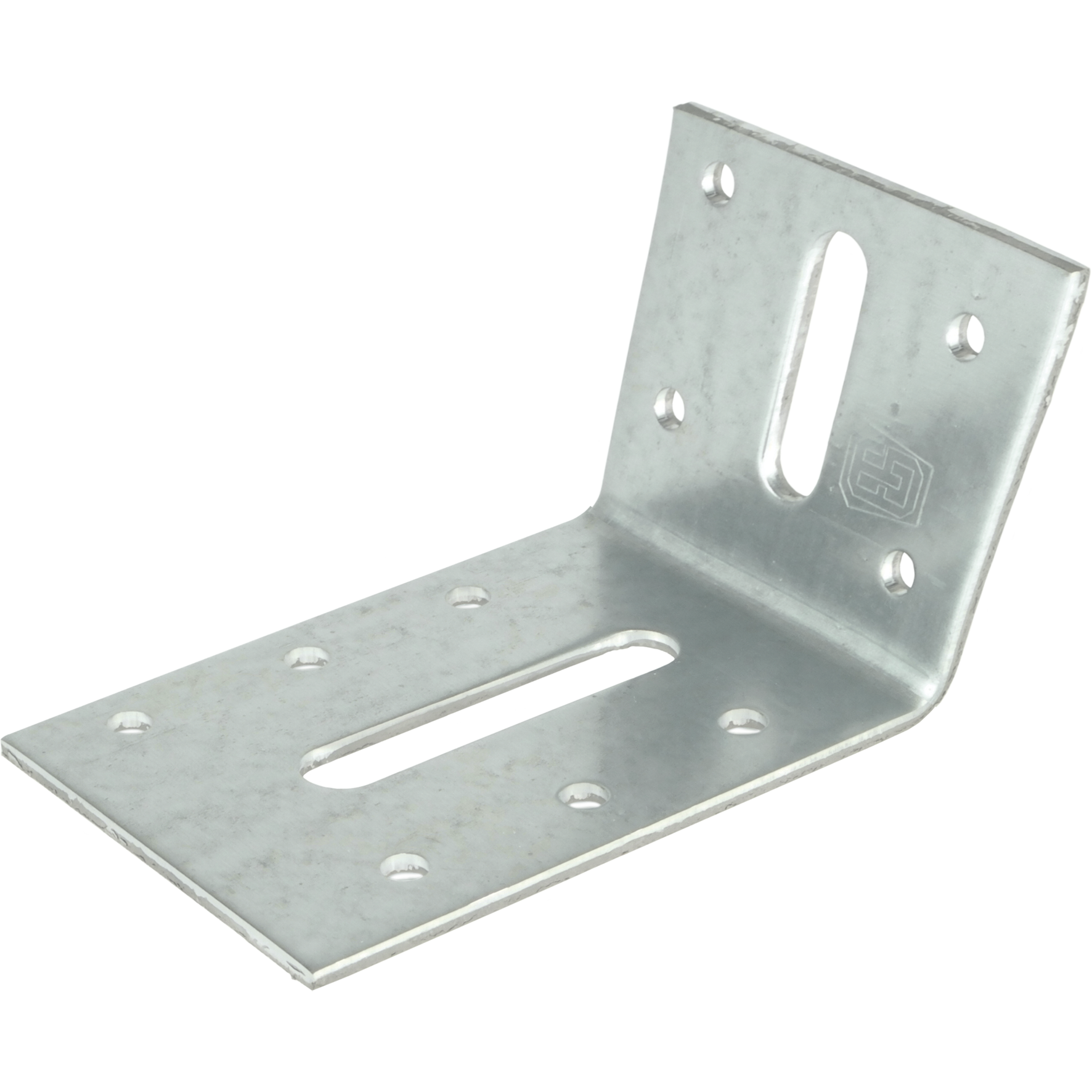

Angle bracket 100°

A corner set at an angle of less than 100° to anchor a drain-milled top lintel of a window frame to the facade structure.

Length 1

Length 2

Width

60 mm

72 mm

Thickness

Slotted hole

Steel Quality

DX51

S350

Surface treatment

Details & dimensions

Article

Article number072500

EAN code8714318069469

Packaging

EAN code8714318069483

Packaging100 per box

Length400 mm

Width300 mm

Height150 mm

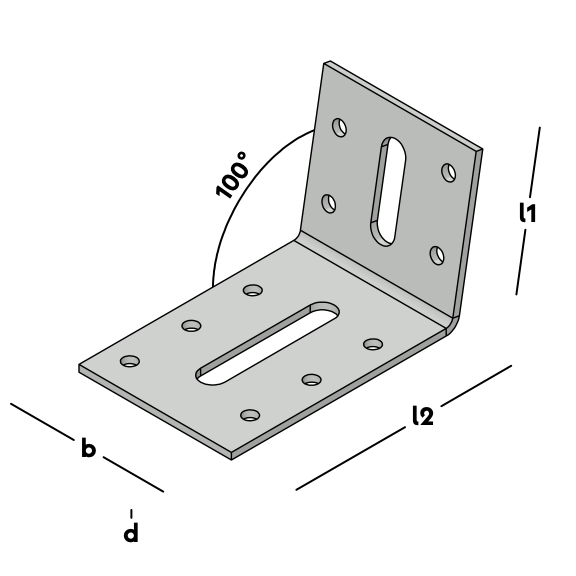

Dimensions

Angle bracket 100°

Length 1 (l1)55 mm

Length 2 (l2)85 mm

Width (b)60 mm

Thickness (d)2,5 mm

Slotted hole32x9-50x9 mm

Hole pattern10/5

Degrees ° angle-put100 °

MaterialSteel

Steel QualityS350

Surface treatment

Downloads

Drawings and models in 2D and 3D

Processing & accessories

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Lengte 1	Lengte 2	Breedte	Dikte	Slobgaten	Gatenpatroon	Graden ° hoek-gezet	Materiaal	Staalkwaliteit
Bovendorpelanker 100°	072360	100 per box	50 mm	50 mm	60 mm	2,5 mm	9x30-12x30 mm	12/4	100 °	Staal	DX51
Bovendorpelanker 100°	07250	100 per box	50 mm	50 mm	60 mm	2 mm	4,5x13-6,5x24-8,5x24 mm	6/4,5-4/6,5-2/8,5	100 °	Staal	DX51
Bovendorpelanker 100°	072500	100 per box	55 mm	85 mm	60 mm	2,5 mm	9x32-9x50 mm	10/5	100 °	Staal	S350
Bovendorpelanker 100°	072502	100 per box	60 mm	80 mm	60 mm	2,5 mm	13x32-13x50 mm	10/5	100 °	Staal	S350
Bovendorpelanker 100°	072503	100 per box	60 mm	60 mm	60 mm	2 mm	2/11x30 mm	10/4,5-4/6,5	100 °	Staal	DX51
Bovendorpelanker 100°	072505	30 per bag	60 mm	100 mm	60 mm	6 mm	13x65 mm	2/9-1/11	100 °	Staal	DX51
Bovendorpelanker 100°	072384	30 per box	75 mm	100 mm	72 mm	4 mm	13x30-13x60 mm	8/7-6/9	100 °	Staal	S350
Bovendorpelanker 100°	072221	100 per box	90 mm	90 mm	60 mm	2,5 mm	11x30 mm	10/4-6/6-4/9-1/11	100 °	Staal	DX51
