Lijmkozijnanker
Lijmkozijnanker

Frame anchor

Material
RVS 316
Steel
Steel Quality
S280
W-Nr.:1.4404

Details & dimensions

Article

Article number21201
EAN code8714318042882

Packaging

EAN code8714318101152
Packaging100 per box
Length330 mm
Width230 mm
Height130 mm

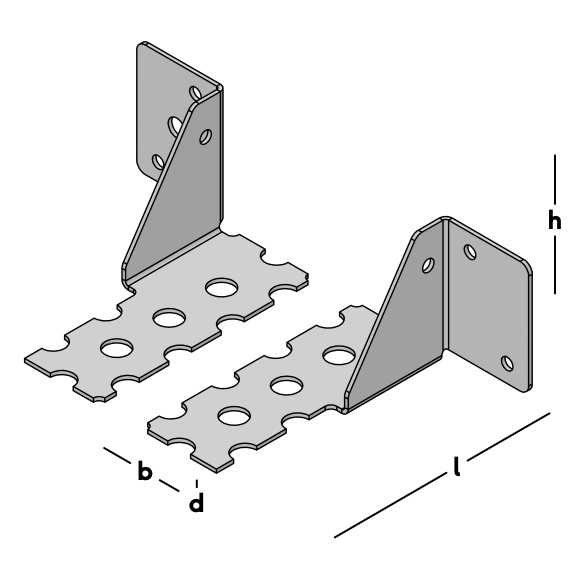

Dimensions

Frame anchor

Length (l)75 mm
Width (b)25 mm
Thickness (d)1,25 mm
Height (h)40 mm
Hole pattern3/4-1/6-3/8
MaterialSteel
Steel QualityS280
Surface treatmentSV

Downloads

Drawings and models in 2D and 3D

DWG
DXF
IFC
STP
PDF
