Lijmkozijnanker
Lijmkozijnanker

Frame anchor

Anchor for gluing into the inner cavity wall (glue or bevel block) of lightweight window frames already installed before gluing. Glue frame anchors (in left and right versions) are fastened to the wood frame with grip anchor nails.

Material
RVS 316
Steel
Steel Quality
S280
W-Nr.:1.4404

Details & dimensions

Article

Article number21203
EAN code8714318001339

Packaging

EAN code8714318101244
Packaging100 per box
Length330 mm
Width230 mm
Height130 mm

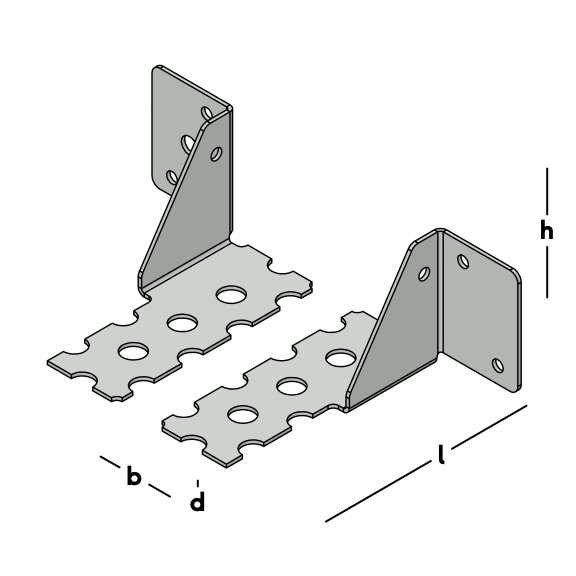

Dimensions

Frame anchor

Length (l)75 mm
Width (b)25 mm
Thickness (d)1,25 mm
Height (h)40 mm
Hole pattern3/4-1/6-3/8
MaterialRVS 316
Steel QualityW-Nr.:1.4404
Surface treatmentSV
