Kozijnanker
Kozijnanker

Window frame anchor

Anchor rod with wood thread on one side for screwing into the (set) frame. The other side has a corrugated profile that can be bricked into the ribbon joint of the internal cavity wall.

Length
Width
40 mm
50 mm
60 mm
Diameter
6 mm
18 mm
30 mm
Receivers for
Slip tie Ø6
Window frame anchor
Environmental class
MX 1
MX 3.1
Material
RVS 304
Steel
Ø6 - Ø24
Steel Quality
DX51
W-Nr.:1.4567
Surface treatment
AL
EV
VD

Details & dimensions

Article

Article number20223
EAN code8714318038236

Packaging

EAN code8714318038229
Packaging100 per box
Length285 mm
Width140 mm
Height63 mm

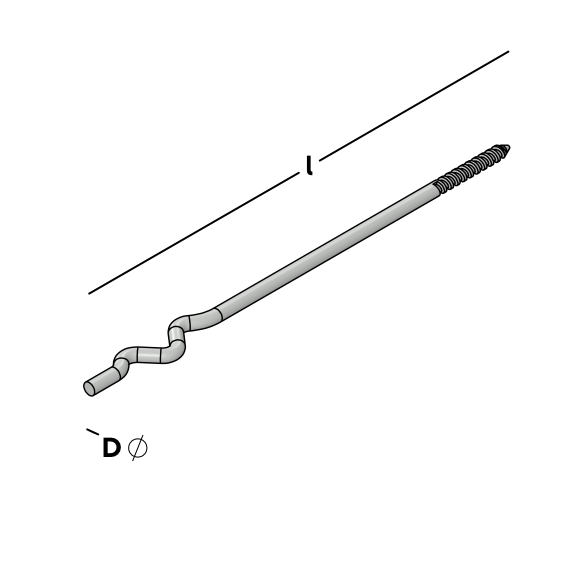

Dimensions

Window frame anchor

Length (l)230 mm
Diameter6 mm
Environmental classMX 1
MaterialSteel
Steel QualityDX51
Surface treatmentVD

Downloads

Drawings and models in 2D and 3D

Processing & accessories

You can use the products below to place or confirm the product correctly.
