Kozijnanker
Kozijnanker

Window frame anchor

L-shaped anchor with wood thread on the long side for screwing into the (set) frame. The other side has a right-angled turned part that can be bricked into the ribbon joint of the internal cavity wall.

Length
Width
40 mm
50 mm
60 mm
Diameter
6 mm
18 mm
30 mm
Receivers for
Slip tie Ø6
Window frame anchor
Environmental class
MX 1
MX 3.1
Material
RVS 304
Steel
Ø6 - Ø24
Steel Quality
DX51
W-Nr.:1.4567
Surface treatment
AL
EV
VD

Details & dimensions

Article

Article number20612
EAN code8714318001315

Packaging

EAN code8714318101220
Packaging100 per box
Length255 mm
Width140 mm
Height63 mm

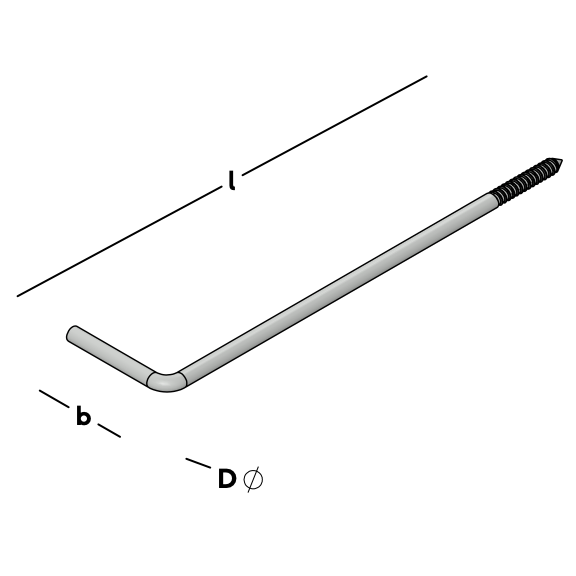

Dimensions

Window frame anchor

Length (l)200 mm
Width (b)50 mm
Diameter6 mm
Environmental classMX 3.1
MaterialRVS 304
Steel QualityW-Nr.:1.4567
Surface treatmentVD

Downloads

Drawings and models in 2D and 3D

Processing & accessories

You can use the products below to place or confirm the product correctly.
