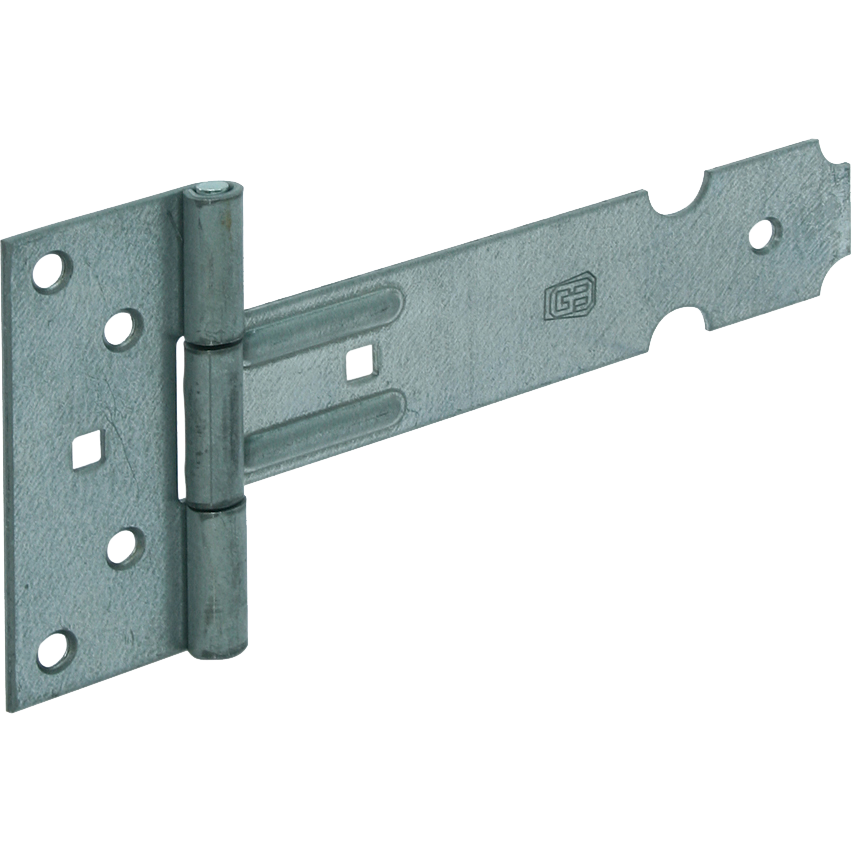

Cross hinge - light
Hinge with an extended blade on one side. Suitable for gates, shutters and doors.
Length
Material
Steel Quality
Surface treatment
Details & dimensions
Article
Article number404120
EAN code8714318023638
Packaging
EAN code8714318070328
Packaging10 per box
Length280 mm
Width135 mm
Height65 mm
Dimensions
Cross hinge - light
Length (l)150 mm
Width (b)35 mm
Thickness (d)2 mm
Hole pattern5/6
Square hole2/6x6 mm
MaterialSteel
Steel QualityS350
Surface treatment
