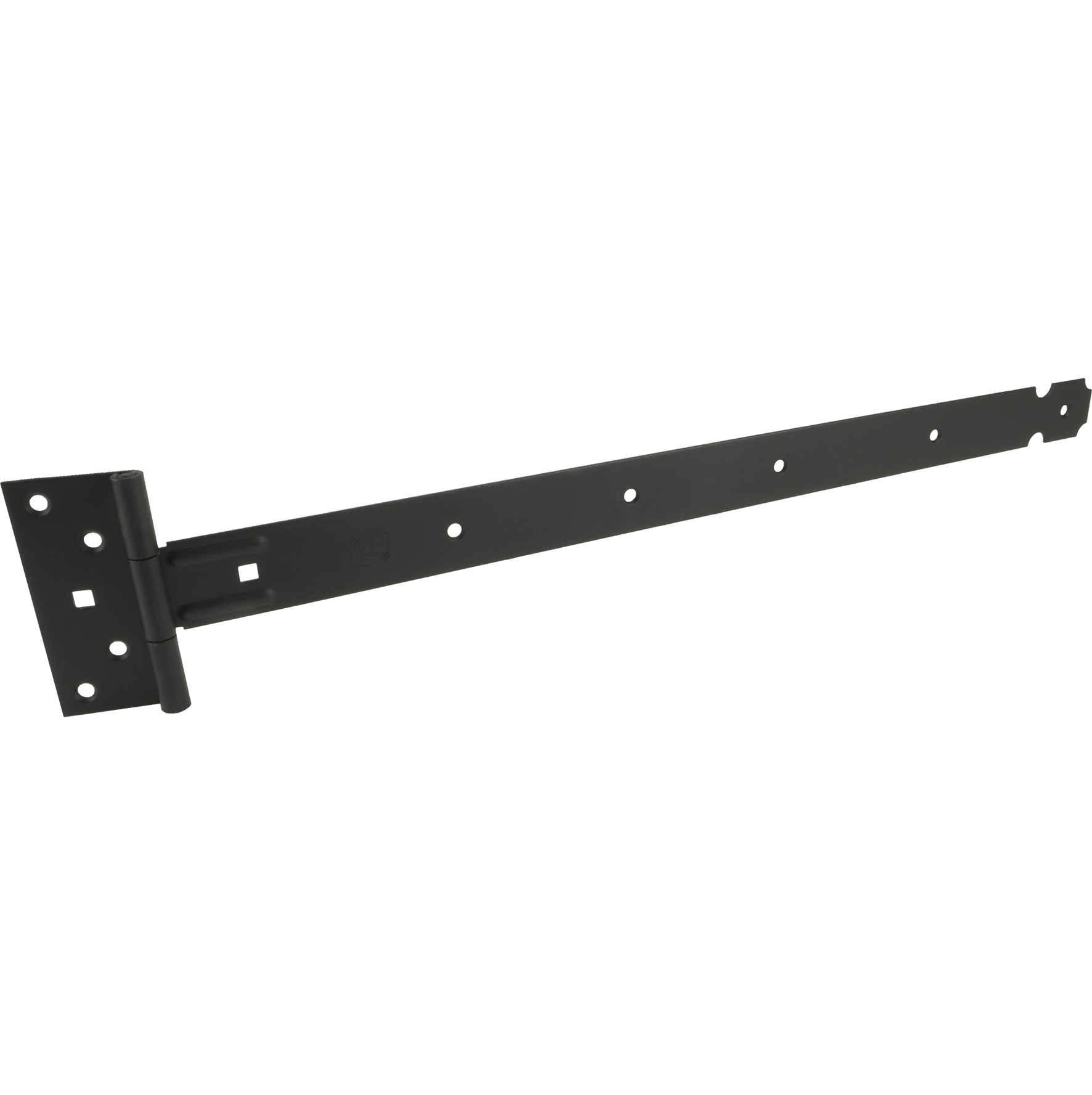

Cross hinge - light

Hinge with an extended blade on one side. Suitable for gates, shutters and doors.

Length

Material

RVS 304

Steel

Steel Quality

S350

W-Nr.: 1.4301

Surface treatment

EPZ

Details & dimensions

Article number408140

EAN code8714318063382

EAN code8714318070472

Packaging10 per box

Length285 mm

Width140 mm

Height63 mm

Length (l)250 mm

Width (b)35 mm

Thickness (d)2 mm

Hole pattern7/6

Square hole2/6x6 mm

MaterialSteel

Steel QualityS350

Surface treatment EPZ

Drawings and models in 2D and 3D

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Length	Width	Thickness	Hole pattern	Square hole	Material	Steel Quality	Surface treatment
Cross hinge - light	404120	10 per box	150 mm	35 mm	2 mm	5/6	2/6x6 mm	Steel	S350
Cross hinge - light	404130	10 per box	200 mm	35 mm	2 mm	6/6	2/6x6 mm	Steel	S350
Cross hinge - light	404140	10 per box	250 mm	35 mm	2 mm	7/6	2/6x6 mm	Steel	S350
Cross hinge - light	404150	10 per box	300 mm	35 mm	2 mm	7/6	2/6x6 mm	Steel	S350
Cross hinge - light	404170	10 per box	400 mm	35 mm	2 mm	8/6	2/6x6 mm	Steel	S350
Cross hinge - light	404190	10 per box	500 mm	35 mm	2 mm	9/6	2/6x6 mm	Steel	S350
Cross hinge - light	405130	10 per box	200 mm	35 mm	2 mm	6/6	2/6x6 mm	RVS 304	W-Nr.: 1.4301	-
Cross hinge - light	405140	10 per box	250 mm	35 mm	2 mm	6/6	2/6x6 mm	RVS 304	W-Nr.: 1.4301	-
Cross hinge - light	405150	10 per box	300 mm	35 mm	2 mm	7/6	2/6x6 mm	RVS 304	W-Nr.: 1.4301	-
Cross hinge - light	405170	10 per box	400 mm	35 mm	2 mm	8/6	2/6x6 mm	RVS 304	W-Nr.: 1.4301	-
Cross hinge - light	408130	10 per box	200 mm	35 mm	2 mm	6/6	2/6x6 mm	Steel	S350
Cross hinge - light	408140	10 per box	250 mm	35 mm	2 mm	7/6	2/6x6 mm	Steel	S350
Cross hinge - light	408150	10 per box	300 mm	35 mm	2 mm	7/6	2/6x6 mm	Steel	S350
Cross hinge - light	408170	10 per box	400 mm	35 mm	2 mm	8/6	2/6x6 mm	Steel	S350
Cross hinge - light	408190	10 per box	500 mm	35 mm	2 mm	9/6	2/6x6 mm	Steel	S350
