Door joist hook closed

Closed bracket suitable for wooden or steel door beams with a head size of up to 55 x 75 mm.

Steel Quality

S235

S315

Surface treatment

EPZ-3

Details & dimensions

Article number71491

EAN code8714318043421

EAN code8714318107888

Packaging20 per box

Length340 mm

Width260 mm

Height85 mm

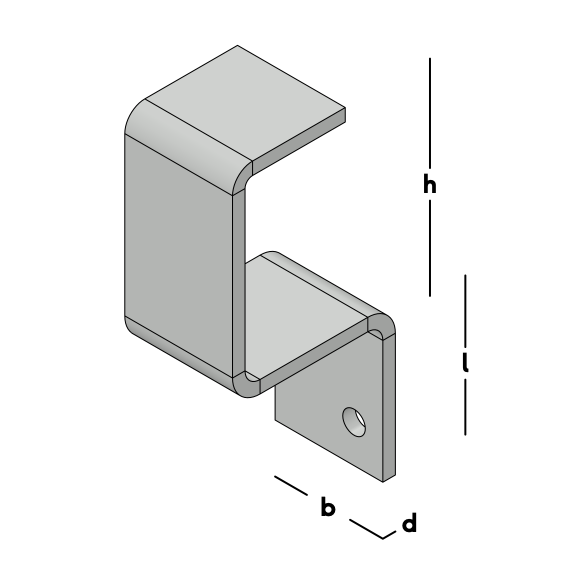

Length (l)55 mm

Width (b)40 mm

Thickness (d)6 mm

Height (h)80 mm

Receivers fordoor bar max 55x75

Hole pattern2/9

MaterialSteel

Steel QualityS315

Surface treatment

Drawings and models in 2D and 3D

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Length	Width	Thickness	Height	Receivers for	Hole pattern	Material	Steel Quality	Surface treatment
Door joist hook closed	71491	20 per box	55 mm	40 mm	6 mm	80 mm	door bar max 55x75	2/9	Steel	S315
Door joist hook closed	714918	10 per box	55 mm	40 mm	6 mm	80 mm	-	2/9	Steel	S235
