Door joist hook closed

Name: Door joist hook closed
SKU: 714918

Closed bracket suitable for wooden or steel door beams with a head size of up to 55 x 75 mm.

Surface treatment

EPZ-3

EV-2

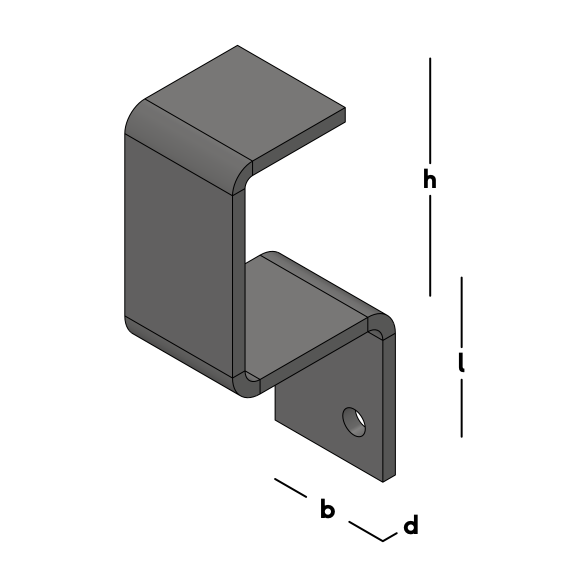

Details & dimensions

Article number714918

EAN code8714318083182

EAN code8714318083175

Packaging10 per box

Length340 mm

Width260 mm

Height85 mm

Length (l)55 mm

Width (b)40 mm

Thickness (d)6 mm

Height (h)80 mm

Hole pattern2/9

MaterialSteel

Steel QualityS315

Surface treatment EPZ-3

Drawings and models in 2D and 3D

Name	Article number	Packaging	Length	Width	Thickness	Height	Receivers for	Hole pattern	Material	Steel Quality	Surface treatment
Door joist hook closed	71491	20 per box	55 mm	40 mm	6 mm	80 mm	door bar max 55x75	2/9	Steel	S315	EV-2
Door joist hook closed	714918	10 per box	55 mm	40 mm	6 mm	80 mm	-	2/9	Steel	S315	EPZ-3
