Door handle attachment

Loose hook for a Wieringermeer latch set.

Length

Width

25 mm

35 mm

50 mm

Thickness

2 mm

4 mm

5 mm

Diameter

25 mm

100 mm

Steel Quality

DX51

S235

Details & dimensions

Article

Article number71455

EAN code8714318008796

Packaging

EAN code8714318008796

Packaging1 piece

Length215 mm

Width50 mm

Height60 mm

Dimensions

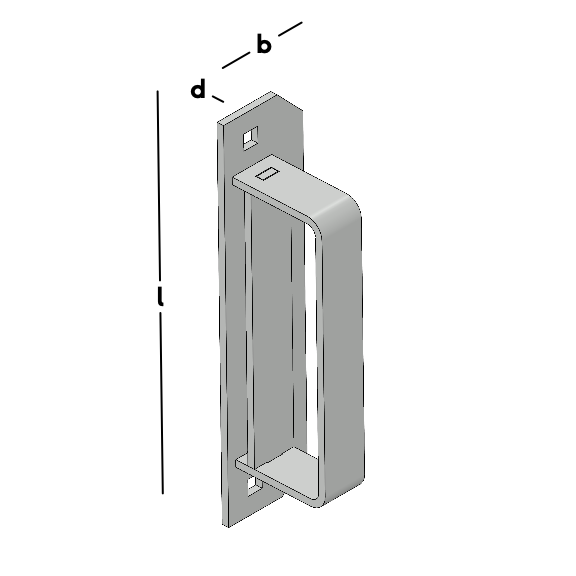

Door handle attachment

Length (l)215 mm

Width (b)50 mm

Thickness (d)4 mm

Square hole2/9x9 mm

MaterialSteel

Steel QualityS235

Surface treatment

Downloads

Drawings and models in 2D and 3D

Processing & accessories

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Length	Width	Thickness	Diameter	Hole pattern	Square hole	Material	Steel Quality
Screw on collar	714500	10 per box	-	-	5 mm	-	2/5,5	-	Steel	DX51
Plate collar for Wieringermeer	714510	10 per box	80 mm	35 mm	5 mm	-	2/5,5	-	Steel	DX51
Claw Collar	714520	10 per box	80 mm	35 mm	5 mm	-	2/5,5	-	Steel	S235
Door handle	71454	1 piece	280 mm	25 mm	5 mm	-	1/7	-	Steel	S235
Door handle attachment	71455	1 piece	215 mm	50 mm	4 mm	-	-	2/9x9 mm	Steel	S235
Door handle attachment	71456	1 piece	190 mm	-	2 mm	100 mm	6/4	-	Steel	S235
Small ring for WM	71457	1 piece	-	-	5 mm	25 mm	1/8,5	-	Steel	S235
