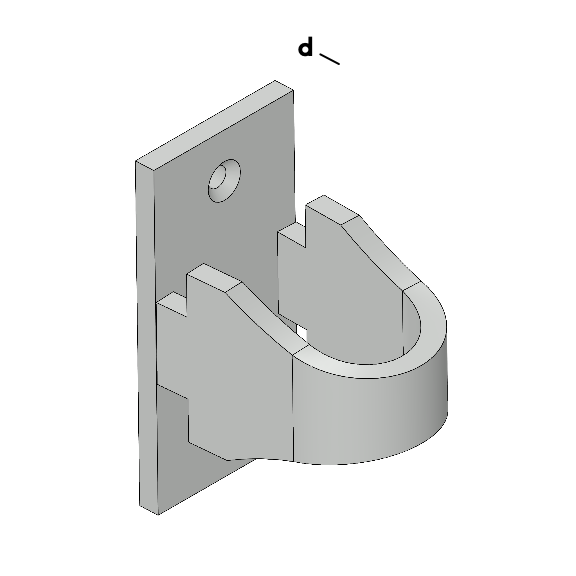

Screw on collar

Screw-on lock for a Wieringermeer latch set.

Length

Width

25 mm

35 mm

50 mm

Thickness

2 mm

4 mm

5 mm

Diameter

25 mm

100 mm

Steel Quality

DX51

S235

Details & dimensions

Article number714500

EAN code8714318996864

EAN code8714318996871

Packaging10 per box

Length220 mm

Width180 mm

Height80 mm

Thickness (d)5 mm

Hole pattern2/5,5

MaterialSteel

Steel QualityDX51

Surface treatment

Drawings and models in 2D and 3D

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Length	Width	Thickness	Diameter	Hole pattern	Square hole	Material	Steel Quality
Screw on collar	714500	10 per box	-	-	5 mm	-	2/5,5	-	Steel	DX51
Plate collar for Wieringermeer	714510	10 per box	80 mm	35 mm	5 mm	-	2/5,5	-	Steel	DX51
Claw Collar	714520	10 per box	80 mm	35 mm	5 mm	-	2/5,5	-	Steel	S235
Door handle	71454	1 piece	280 mm	25 mm	5 mm	-	1/7	-	Steel	S235
Door handle attachment	71455	1 piece	215 mm	50 mm	4 mm	-	-	2/9x9 mm	Steel	S235
Door handle attachment	71456	1 piece	190 mm	-	2 mm	100 mm	6/4	-	Steel	S235
Small ring for WM	71457	1 piece	-	-	5 mm	25 mm	1/8,5	-	Steel	S235
