Hinge hook

Pin Ø 16mm fitted with a backplate with screw holes. For use in combination with a thumb handle.

Width

30 mm

35 mm

38 mm

Thickness

4 mm

5 mm

Height

Material

RVS 304

Steel

Steel Quality

Surface treatment

Details & dimensions

Article

Article number49404

EAN code8714318043292

Packaging

EAN code8714318107147

Packaging50 per box

Length330 mm

Width230 mm

Height170 mm

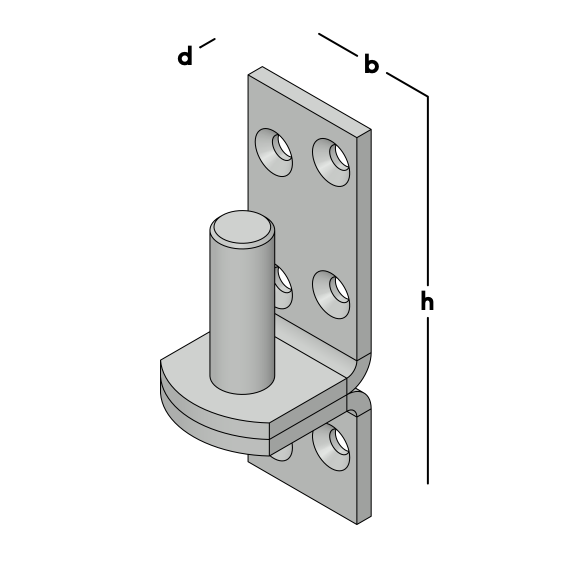

Dimensions

Hinge hook

Width (b)38 mm

Thickness (d)5 mm

Height (h)117 mm

Hole pattern6/7

Backplate38x117 mm

Size pinionØ16x45

MaterialSteel

Steel QualityS235

Surface treatment

Downloads

Drawings and models in 2D and 3D

Processing & accessories

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Breedte	Dikte	Hoogte	Gatenpatroon	Achterplaat	Maat pen	Materiaal	Staalkwaliteit	Oppervlaktebehandeling
Plaatduim	492524	50 per box	35 mm	4 mm	97 mm	6/7	35x97 mm	Ø16x45	RVS 304	W-Nr.: 1.4301	-
Plaatduim	49404	50 per box	38 mm	5 mm	117 mm	6/7	38x117 mm	Ø16x45	Staal	S235
Plaatduim	49405	50 per box	38 mm	4 mm	117 mm	6/7	38x117	Ø16x45	Staal	S350
Plaatduim	49504	50 per box	38 mm	5 mm	117 mm	6/7	38x117 mm	Ø16x45	Staal	DX51
Plaatduim	49905	10 per box	38 mm	5 mm	117 mm	6/7	38x117 mm	Ø16x45	Staal	S315
Plaatduim Rustica	49843	10 per box	38 mm	5 mm	210 mm	2/9	38x210 mm	Ø16x45	Staal	S315
Plaatduim Rustica	49841	10 per box	30 mm	5 mm	150 mm	2/7	30x150 mm	Ø16x35	Staal	S315
