Hinge hook

Pin Ø 16mm fitted with a backplate with screw holes. For use in combination with a thumb handle.

Width

30 mm

35 mm

38 mm

Thickness

4 mm

5 mm

Height

Material

RVS 304

Steel

Steel Quality

Surface treatment

Details & dimensions

Article

Article number49405

EAN code8714318075972

Packaging

EAN code8714318077877

Packaging50 per box

Length320 mm

Width230 mm

Height180 mm

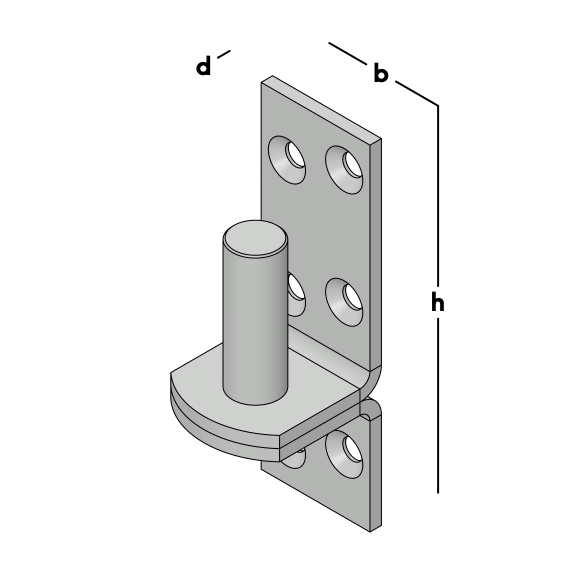

Dimensions

Hinge hook

Width (b)38 mm

Thickness (d)4 mm

Height (h)117 mm

Hole pattern6/7

Backplate38x117

Size pinionØ16x45

MaterialSteel

Steel QualityS350

Surface treatment ZM-4

Downloads

Drawings and models in 2D and 3D

Processing & accessories

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Width	Thickness	Height	Hole pattern	Backplate	Size pinion	Material	Steel Quality
Hinge hook	492524	50 per box	35 mm	4 mm	97 mm	6/7	35x97 mm	Ø16x45	RVS 304	W-Nr.: 1.4301
Hinge hook	49404	50 per box	38 mm	5 mm	117 mm	6/7	38x117 mm	Ø16x45	Steel	S235
Hinge hook	49405	50 per box	38 mm	4 mm	117 mm	6/7	38x117	Ø16x45	Steel	S350
Hinge hook	49504	50 per box	38 mm	5 mm	117 mm	6/7	38x117 mm	Ø16x45	Steel	DX51
Hinge hook	49905	10 per box	38 mm	5 mm	117 mm	6/7	38x117 mm	Ø16x45	Steel	S315
Hinge hook Rustica	49843	10 per box	38 mm	5 mm	210 mm	2/9	38x210 mm	Ø16x45	Steel	S315
Hinge hook Rustica	49841	10 per box	30 mm	5 mm	150 mm	2/7	30x150 mm	Ø16x35	Steel	S315
