Hinge for pinion Ø16

Handle for hinged fastening of gates and doors. For use in combination with a thumb Ø 16mm.

Length

Width

40 mm

45 mm

Thickness

4 mm

5 mm

6 mm

Slotted hole

Material

RVS 304

Steel

Steel Quality

S235

S315

W-Nr.:1.4307

Surface treatment

Details & dimensions

Article

Article number42513

EAN code8714318007676

Packaging

EAN code8714318107000

Packaging10 per bunch

Length810 mm

Width65 mm

Height40 mm

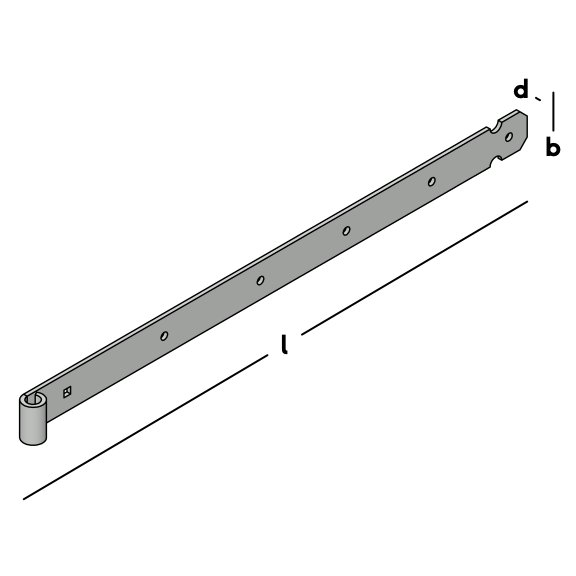

Dimensions

Hinge for pinion Ø16

Length (l)700 mm

Width (b)45 mm

Thickness (d)6 mm

Slotted hole9x9 mm

Hole pattern5/9

Square hole9x9 mm

For pinion ØØ16 mm

MaterialSteel

Steel QualityS235

Surface treatment

Downloads

Drawings and models in 2D and 3D

Processing & accessories

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Length	Width	Thickness	Slotted hole	Hole pattern	Square hole	For pinion Ø	Material	Steel Quality
Hinge for pinion Ø16 - square holes	422605	10 per bunch	300 mm	40 mm	4 mm	3/9x9 mm	-	3/9x9 mm	Ø16 mm	RVS 304	W-Nr.:1.4307
Hinge for pinion Ø16 - square holes	422607	10 per bunch	400 mm	40 mm	4 mm	4/9x9 mm	-	4/9x9 mm	Ø16 mm	RVS 304	W-Nr.:1.4307
Hinge for pinion Ø16 - square holes	422609	10 per bunch	500 mm	40 mm	4 mm	5/9x9 mm	-	5/9x9 mm	Ø16 mm	RVS 304	W-Nr.:1.4307
Hinge for pinion Ø16 - square holes	422611	10 per bunch	600 mm	40 mm	4 mm	5/9x9 mm	-	5/9x9 mm	Ø16 mm	RVS 304	W-Nr.:1.4307
Hinge for pinion Ø16 - square holes	422615	10 per bunch	800 mm	40 mm	4 mm	5/9x9 mm	-	5/9x9 mm	Ø16 mm	RVS 304	W-Nr.:1.4307
Hinge for pinion Ø16	424040	10 per bunch	250 mm	40 mm	5 mm	1/9x9 mm	1/9	-	Ø16 mm	Steel	S235
Hinge for pinion Ø16	424050	10 per bunch	300 mm	40 mm	5 mm	2/9x9 mm	1/9	2/9x9 mm	Ø16 mm	Steel	S235
Hinge for pinion Ø16	424070	10 per bunch	400 mm	40 mm	5 mm	2/9x9 mm	2/9	2/9x9 mm	Ø16 mm	Steel	S235
Hinge for pinion Ø16	424080	10 per bunch	500 mm	40 mm	5 mm	2/9x9 mm	3/9	2/9x9 mm	Ø16 mm	Steel	S235
Hinge for pinion Ø16	424090	10 per bunch	500 mm	45 mm	6 mm	9x9 mm	3/9	9x9 mm	Ø16 mm	Steel	S235
Hinge for pinion Ø16	424100	10 per bunch	600 mm	40 mm	5 mm	2/9x9 mm	3/9	2/9x9 mm	Ø16 mm	Steel	S235
Hinge for pinion Ø16	424110	10 per bunch	600 mm	45 mm	6 mm	9x9 mm	4/9	9x9 mm	Ø16 mm	Steel	S235
Hinge for pinion Ø16	424120	10 per bunch	700 mm	45 mm	5 mm	9x9 mm	5/9	9x9 mm	Ø16 mm	Steel	S235
Hinge for pinion Ø16	424130	10 per bunch	700 mm	45 mm	6 mm	9x9 mm	5/9	9x9 mm	Ø16 mm	Steel	S235
Hinge for pinion Ø16	42415	10 per bunch	800 mm	45 mm	6 mm	9x9 mm	6/9	9x9 mm	Ø16 mm	Steel	S235
Hinge for pinion Ø16	42417	10 per bunch	900 mm	45 mm	6 mm	9x9 mm	6/9	9x9 mm	Ø16 mm	Steel	S235
Hinge for pinion Ø16	42419	10 per bunch	1000 mm	45 mm	6 mm	9x9 mm	7/9	9x9 mm	Ø16 mm	Steel	S315
Hinge for pinion Ø16 - square holes	42805	10 per box	300 mm	40 mm	5 mm	3/9x9 mm	-	3/9x9 mm	Ø16 mm	Steel	S315
Hinge for pinion Ø16 - square holes	42807	10 per box	400 mm	40 mm	5 mm	4/9x9 mm	-	4/9x9 mm	Ø16 mm	Steel	S315
Hinge for pinion Ø16 - square holes	42809	10 per box	500 mm	40 mm	5 mm	5/9x9 mm	-	5/9x9 mm	Ø16 mm	Steel	S315
Hinge for pinion Ø16 - square holes	42815	10 per box	800 mm	45 mm	6 mm	7/9x9 mm	-	7/9x9 mm	Ø16 mm	Steel	S315
Hinge for pinion Ø16 - square holes	42811	10 per box	600 mm	45 mm	6 mm	5/9x9 mm	-	5/9x9 mm	Ø16 mm	Steel	S315
Hinge for pinion Ø16 - square holes	42819	1 piece	1000 mm	45 mm	6 mm	8/9x9 mm	-	8/9x9 mm	Ø16 mm	Steel	S315
Hinge for pinion Ø16 - square holes	42823	1 piece	1200 mm	45 mm	6 mm	6/9x9 mm	-	6/9x9 mm	Ø16 mm	Steel	S235
	42824	1 piece	600 mm	45 mm	5 mm	5/8x8 mm	-	5/8x8 mm	Ø16 mm	Steel	S235
	42825	1 piece	800 mm	45 mm	5 mm	6/8x8 mm	-	6/8x8 mm	Ø16 mm	Steel	S235
Hinge for pinion Ø16	42505	10 per bunch	300 mm	40 mm	5 mm	9x9 mm	2/9	9x9 mm	Ø16 mm	Steel	S315
Hinge for pinion Ø16	42507	10 per bunch	400 mm	40 mm	5 mm	9x9 mm	3/9	9x9 mm	Ø16 mm	Steel	S315
Hinge for pinion Ø16	42509	10 per bunch	500 mm	45 mm	6 mm	9x9 mm	3/9	9x9 mm	Ø16 mm	Steel	S315
Hinge for pinion Ø16	42511	10 per bunch	600 mm	45 mm	6 mm	9x9 mm	4/9	9x9 mm	Ø16 mm	Steel	S235
Hinge for pinion Ø16	42513	10 per bunch	700 mm	45 mm	6 mm	9x9 mm	5/9	9x9 mm	Ø16 mm	Steel	S235
Hinge for pinion Ø16	42515	10 per bunch	800 mm	45 mm	6 mm	9x9 mm	6/9	9x9 mm	Ø16 mm	Steel	S235
Hinge for pinion Ø16	42517	10 per bunch	900 mm	45 mm	6 mm	9x9 mm	6/9	9x9 mm	Ø16 mm	Steel	S315
Hinge for pinion Ø16	42519	10 per bunch	1000 mm	45 mm	6 mm	9x9 mm	7/9	9x9 mm	Ø16 mm	Steel	S235
Hinge for pinion Ø16	42520	10 per bunch	1200 mm	45 mm	6 mm	9x9 mm	5/9	9x9 mm	Ø16 mm	Steel	S235
Hinge for pinion Ø16	42423	10 per bunch	1200 mm	45 mm	6 mm	9x9 mm	5/9	9x9 mm	Ø16 mm	Steel	S315
Hinge for pinion Ø16 - square holes	424407	10 per bunch	400 mm	40 mm	5 mm	4/9x9 mm	-	4/9x9 mm	Ø16 mm	Steel	S315
Hinge for pinion Ø16 - square holes	424409	10 per bunch	500 mm	40 mm	5 mm	5/9x9 mm	-	5/9x9 mm	Ø16 mm	Steel	S315
Hinge for pinion Ø16 - square holes	424411	10 per bunch	600 mm	45 mm	6 mm	5/9x9 mm	-	5/9x9 mm	Ø16 mm	Steel	S235
Hinge for pinion Ø16 - square holes	424415	10 per bunch	800 mm	45 mm	6 mm	7/9x9 mm	-	7/9x9 mm	Ø16 mm	Steel	S235
Hinge for pinion Ø16 - square holes	424419	10 per bunch	1000 mm	45 mm	6 mm	8/9x9 mm	-	8/9x9 mm	Ø16 mm	Steel	S315
Hinge for pinion Ø16 - square holes	424423	10 per bunch	1200 mm	45 mm	6 mm	6/9x9 mm	-	6/9x9 mm	Ø16 mm	Steel	S315
