Hinge for pinion Ø16 - square holes

Handle for hinged fastening of gates and doors. Fitted with square (carriage bolt) holes. For use in combination with a Ø 16 mm thumb.

Length

Width

40 mm

45 mm

Thickness

4 mm

5 mm

6 mm

Slotted hole

Material

RVS 304

Steel

Steel Quality

S235

S315

W-Nr.:1.4307

Surface treatment

Details & dimensions

Article

Article number42815

EAN code8714318063580

Packaging

EAN code8714318063597

Packaging10 per box

Length840 mm

Width130 mm

Height75 mm

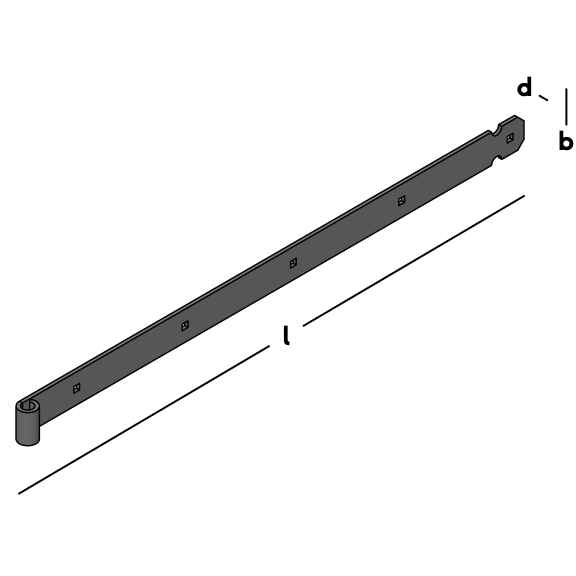

Dimensions

Hinge for pinion Ø16 - square holes

Length (l)800 mm

Width (b)45 mm

Thickness (d)6 mm

Slotted hole7/9x9 mm

Square hole7/9x9 mm

For pinion ØØ16 mm

MaterialSteel

Steel QualityS315

Surface treatment EPZ

Downloads

Drawings and models in 2D and 3D

Processing & accessories

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Length	Width	Thickness	Slotted hole	Hole pattern	Square hole	For pinion Ø	Material	Steel Quality
Hinge for pinion Ø16 - square holes	422605	10 per bunch	300 mm	40 mm	4 mm	3/9x9 mm	-	3/9x9 mm	Ø16 mm	RVS 304	W-Nr.:1.4307
Hinge for pinion Ø16 - square holes	422607	10 per bunch	400 mm	40 mm	4 mm	4/9x9 mm	-	4/9x9 mm	Ø16 mm	RVS 304	W-Nr.:1.4307
Hinge for pinion Ø16 - square holes	422609	10 per bunch	500 mm	40 mm	4 mm	5/9x9 mm	-	5/9x9 mm	Ø16 mm	RVS 304	W-Nr.:1.4307
Hinge for pinion Ø16 - square holes	422611	10 per bunch	600 mm	40 mm	4 mm	5/9x9 mm	-	5/9x9 mm	Ø16 mm	RVS 304	W-Nr.:1.4307
Hinge for pinion Ø16 - square holes	422615	10 per bunch	800 mm	40 mm	4 mm	5/9x9 mm	-	5/9x9 mm	Ø16 mm	RVS 304	W-Nr.:1.4307
Hinge for pinion Ø16	424040	10 per bunch	250 mm	40 mm	5 mm	1/9x9 mm	1/9	-	Ø16 mm	Steel	S235
Hinge for pinion Ø16	424050	10 per bunch	300 mm	40 mm	5 mm	2/9x9 mm	1/9	2/9x9 mm	Ø16 mm	Steel	S235
Hinge for pinion Ø16	424070	10 per bunch	400 mm	40 mm	5 mm	2/9x9 mm	2/9	2/9x9 mm	Ø16 mm	Steel	S235
Hinge for pinion Ø16	424080	10 per bunch	500 mm	40 mm	5 mm	2/9x9 mm	3/9	2/9x9 mm	Ø16 mm	Steel	S235
Hinge for pinion Ø16	424090	10 per bunch	500 mm	45 mm	6 mm	9x9 mm	3/9	9x9 mm	Ø16 mm	Steel	S235
Hinge for pinion Ø16	424100	10 per bunch	600 mm	40 mm	5 mm	2/9x9 mm	3/9	2/9x9 mm	Ø16 mm	Steel	S235
Hinge for pinion Ø16	424110	10 per bunch	600 mm	45 mm	6 mm	9x9 mm	4/9	9x9 mm	Ø16 mm	Steel	S235
Hinge for pinion Ø16	424120	10 per bunch	700 mm	45 mm	5 mm	9x9 mm	5/9	9x9 mm	Ø16 mm	Steel	S235
Hinge for pinion Ø16	424130	10 per bunch	700 mm	45 mm	6 mm	9x9 mm	5/9	9x9 mm	Ø16 mm	Steel	S235
Hinge for pinion Ø16	42415	10 per bunch	800 mm	45 mm	6 mm	9x9 mm	6/9	9x9 mm	Ø16 mm	Steel	S235
Hinge for pinion Ø16	42417	10 per bunch	900 mm	45 mm	6 mm	9x9 mm	6/9	9x9 mm	Ø16 mm	Steel	S235
Hinge for pinion Ø16	42419	10 per bunch	1000 mm	45 mm	6 mm	9x9 mm	7/9	9x9 mm	Ø16 mm	Steel	S315
Hinge for pinion Ø16 - square holes	42805	10 per box	300 mm	40 mm	5 mm	3/9x9 mm	-	3/9x9 mm	Ø16 mm	Steel	S315
Hinge for pinion Ø16 - square holes	42807	10 per box	400 mm	40 mm	5 mm	4/9x9 mm	-	4/9x9 mm	Ø16 mm	Steel	S315
Hinge for pinion Ø16 - square holes	42809	10 per box	500 mm	40 mm	5 mm	5/9x9 mm	-	5/9x9 mm	Ø16 mm	Steel	S315
Hinge for pinion Ø16 - square holes	42815	10 per box	800 mm	45 mm	6 mm	7/9x9 mm	-	7/9x9 mm	Ø16 mm	Steel	S315
Hinge for pinion Ø16 - square holes	42811	10 per box	600 mm	45 mm	6 mm	5/9x9 mm	-	5/9x9 mm	Ø16 mm	Steel	S315
Hinge for pinion Ø16 - square holes	42819	1 piece	1000 mm	45 mm	6 mm	8/9x9 mm	-	8/9x9 mm	Ø16 mm	Steel	S315
Hinge for pinion Ø16 - square holes	42823	1 piece	1200 mm	45 mm	6 mm	6/9x9 mm	-	6/9x9 mm	Ø16 mm	Steel	S235
	42824	1 piece	600 mm	45 mm	5 mm	5/8x8 mm	-	5/8x8 mm	Ø16 mm	Steel	S235
	42825	1 piece	800 mm	45 mm	5 mm	6/8x8 mm	-	6/8x8 mm	Ø16 mm	Steel	S235
Hinge for pinion Ø16	42505	10 per bunch	300 mm	40 mm	5 mm	9x9 mm	2/9	9x9 mm	Ø16 mm	Steel	S315
Hinge for pinion Ø16	42507	10 per bunch	400 mm	40 mm	5 mm	9x9 mm	3/9	9x9 mm	Ø16 mm	Steel	S315
Hinge for pinion Ø16	42509	10 per bunch	500 mm	45 mm	6 mm	9x9 mm	3/9	9x9 mm	Ø16 mm	Steel	S315
Hinge for pinion Ø16	42511	10 per bunch	600 mm	45 mm	6 mm	9x9 mm	4/9	9x9 mm	Ø16 mm	Steel	S235
Hinge for pinion Ø16	42513	10 per bunch	700 mm	45 mm	6 mm	9x9 mm	5/9	9x9 mm	Ø16 mm	Steel	S235
Hinge for pinion Ø16	42515	10 per bunch	800 mm	45 mm	6 mm	9x9 mm	6/9	9x9 mm	Ø16 mm	Steel	S235
Hinge for pinion Ø16	42517	10 per bunch	900 mm	45 mm	6 mm	9x9 mm	6/9	9x9 mm	Ø16 mm	Steel	S315
Hinge for pinion Ø16	42519	10 per bunch	1000 mm	45 mm	6 mm	9x9 mm	7/9	9x9 mm	Ø16 mm	Steel	S235
Hinge for pinion Ø16	42520	10 per bunch	1200 mm	45 mm	6 mm	9x9 mm	5/9	9x9 mm	Ø16 mm	Steel	S235
Hinge for pinion Ø16	42423	10 per bunch	1200 mm	45 mm	6 mm	9x9 mm	5/9	9x9 mm	Ø16 mm	Steel	S315
Hinge for pinion Ø16 - square holes	424407	10 per bunch	400 mm	40 mm	5 mm	4/9x9 mm	-	4/9x9 mm	Ø16 mm	Steel	S315
Hinge for pinion Ø16 - square holes	424409	10 per bunch	500 mm	40 mm	5 mm	5/9x9 mm	-	5/9x9 mm	Ø16 mm	Steel	S315
Hinge for pinion Ø16 - square holes	424411	10 per bunch	600 mm	45 mm	6 mm	5/9x9 mm	-	5/9x9 mm	Ø16 mm	Steel	S235
Hinge for pinion Ø16 - square holes	424415	10 per bunch	800 mm	45 mm	6 mm	7/9x9 mm	-	7/9x9 mm	Ø16 mm	Steel	S235
Hinge for pinion Ø16 - square holes	424419	10 per bunch	1000 mm	45 mm	6 mm	8/9x9 mm	-	8/9x9 mm	Ø16 mm	Steel	S315
Hinge for pinion Ø16 - square holes	424423	10 per bunch	1200 mm	45 mm	6 mm	6/9x9 mm	-	6/9x9 mm	Ø16 mm	Steel	S315
