Hinge for pinion Ø16

Handle with resistance for hinged mounting of gates and doors. The handle's resistance is equal to the (overlapping) thickness of the thumb so that the door can be hung flat relative to the post. For use in combination with a Ø16mm thumb.

Length

Width

40 mm

45 mm

Thickness

5 mm

6 mm

Steel Quality

S235

S315

S350

Surface treatment

Details & dimensions

Article

Article number44707

EAN code8714318044848

Packaging

EAN code8714318044855

Packaging10 per bunch

Length500 mm

Width120 mm

Height40 mm

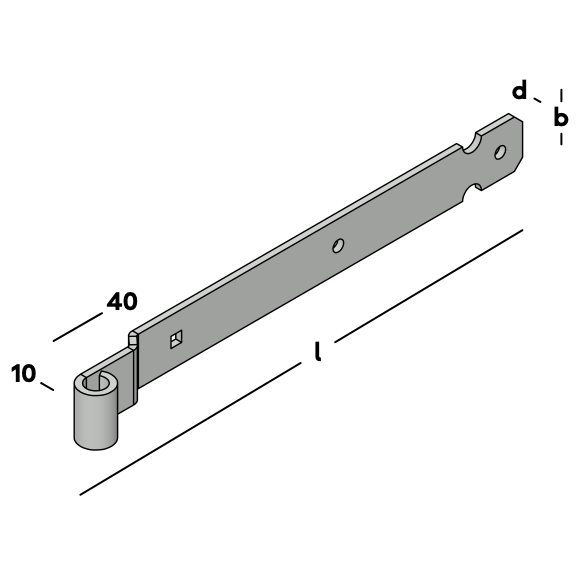

Dimensions

Hinge for pinion Ø16

Length (l)400 mm

Width (b)40 mm

Thickness (d)5 mm

Hole pattern2/9

Square hole2/9x9 mm

Bend10x40 mm

For pinion ØØ16 mm

MaterialSteel

Steel QualityS315

Surface treatment

Downloads

Drawings and models in 2D and 3D

Processing & accessories

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Length	Width	Thickness	Hole pattern	Square hole	Bend	For pinion Ø	Material	Steel Quality	Surface treatment
Hinge for pinion Ø16	44705	10 per bunch	300 mm	40 mm	5 mm	1/9	2/9x9 mm	10x40 mm	Ø16 mm	Steel	S315
Hinge for pinion Ø16	44707	10 per bunch	400 mm	40 mm	5 mm	2/9	2/9x9 mm	10x40 mm	Ø16 mm	Steel	S315
Hinge for pinion Ø16	44709	10 per bunch	500 mm	40 mm	5 mm	3/9	2/9x9 mm	10x40 mm	Ø16 mm	Steel	S315
Hinge for pinion Ø16	44710	10 per bunch	500 mm	45 mm	5 mm	3/9	9x9 mm	10x40 mm	Ø16 mm	Steel	S235
Hinge for pinion Ø16	44711	10 per bunch	600 mm	45 mm	6 mm	4/9	9x9 mm	10x40 mm	Ø16 mm	Steel	S235
Hinge for pinion Ø16	44713	10 per bunch	700 mm	45 mm	6 mm	5/9	9x9 mm	10x40 mm	Ø16 mm	Steel	S235
Hinge for pinion Ø16	44715	10 per bunch	800 mm	45 mm	6 mm	6/9	9x9 mm	10x40 mm	Ø16 mm	Steel	S235
Hinge for pinion Ø16	44717	10 per bunch	900 mm	45 mm	6 mm	6/9	9x9 mm	10x40 mm	Ø16 mm	Steel	S235
Hinge for pinion Ø16	44719	10 per bunch	1000 mm	45 mm	6 mm	7/9	9x9 mm	10x40 mm	Ø16 mm	Steel	S235
Hinge for pinion Ø16	44723	10 per bunch	1200 mm	45 mm	6 mm	5/9	9x9 mm	10x40 mm	Ø16 mm	Steel	S235
Hinge for pinion Ø16	44731	10 per bunch	600 mm	45 mm	5 mm	4/9	9x9 mm	10x40 mm	Ø16 mm	Steel	S350
Hinge for pinion Ø16	44735	10 per bunch	800 mm	45 mm	5 mm	6/9	9x9 mm	10x40 mm	Ø16 mm	Steel	S350	ZM 300
Hinge for pinion Ø16	44744	10 per bunch	600 mm	45 mm	6 mm	4/9	9/9 mm	10x40 mm	Ø16 mm	Steel	S235
Hinge for pinion Ø16	44745	10 per bunch	800 mm	45 mm	6 mm	6/9	9x9 mm	10x40 mm	Ø16 mm	Steel	S235
Hinge for pinion Ø16	44746	10 per bunch	1000 mm	45 mm	6 mm	7/9	9x9 mm	10x40 mm	Ø16 mm	Steel	S235
Hinge for pinion Ø16	44747	10 per bunch	1200 mm	45 mm	6 mm	5/9	9x9 mm	10x40 mm	Ø16 mm	Steel	S235
Hinge for pinion Ø16 - square holes	44807	10 per bunch	400 mm	40 mm	5 mm	-	4/9x9 mm	10x40 mm	Ø16 mm	Steel	S315
Hinge for pinion Ø16 - square holes	44809	10 per bunch	500 mm	40 mm	5 mm	-	5/9x9 mm	10x40 mm	Ø16 mm	Steel	S315
Hinge for pinion Ø16 - square holes	449105	10 per box	300 mm	40 mm	5 mm	2/9	3/9x9 mm	10x40 mm	Ø16 mm	Steel	S315
Hinge for pinion Ø16 - square holes	449107	10 per box	400 mm	40 mm	5 mm	3/9	4/9x9 mm	10x40 mm	Ø16 mm	Steel	S315
Hinge for pinion Ø16 - square holes	449109	10 per box	500 mm	40 mm	5 mm	3/9	5/9x9 mm	10x40 mm	Ø16 mm	Steel	S315
Hinge for pinion Ø16 - square holes	449111	10 per box	600 mm	45 mm	6 mm	4/9	5/9x9 mm	10x40 mm	Ø16 mm	Steel	S235
Hinge for pinion Ø16 - square holes	449115	10 per box	800 mm	45 mm	6 mm	6/9	6/9x9 mm	10x40 mm	Ø16 mm	Steel	S235
Hinge for pinion Ø16 - square holes	449119	1 piece	1000 mm	45 mm	6 mm	7/9	8/9x9 mm	10x40 mm	Ø16 mm	Steel	S235
Hinge for pinion Ø16 - square holes	449123	1 piece	1200 mm	45 mm	6 mm	5/9	6/9x9 mm	10x40 mm	Ø16 mm	Steel	S235
Hinge for pinion Ø16 - square holes	44811	10 per bunch	600 mm	45 mm	6 mm	-	5/9x9 mm	10x40 mm	Ø16 mm	Steel	S235
Hinge for pinion Ø16 - square holes	44815	10 per bunch	800 mm	45 mm	6 mm	-	7/9x9 mm	10x40 mm	Ø16 mm	Steel	S235
