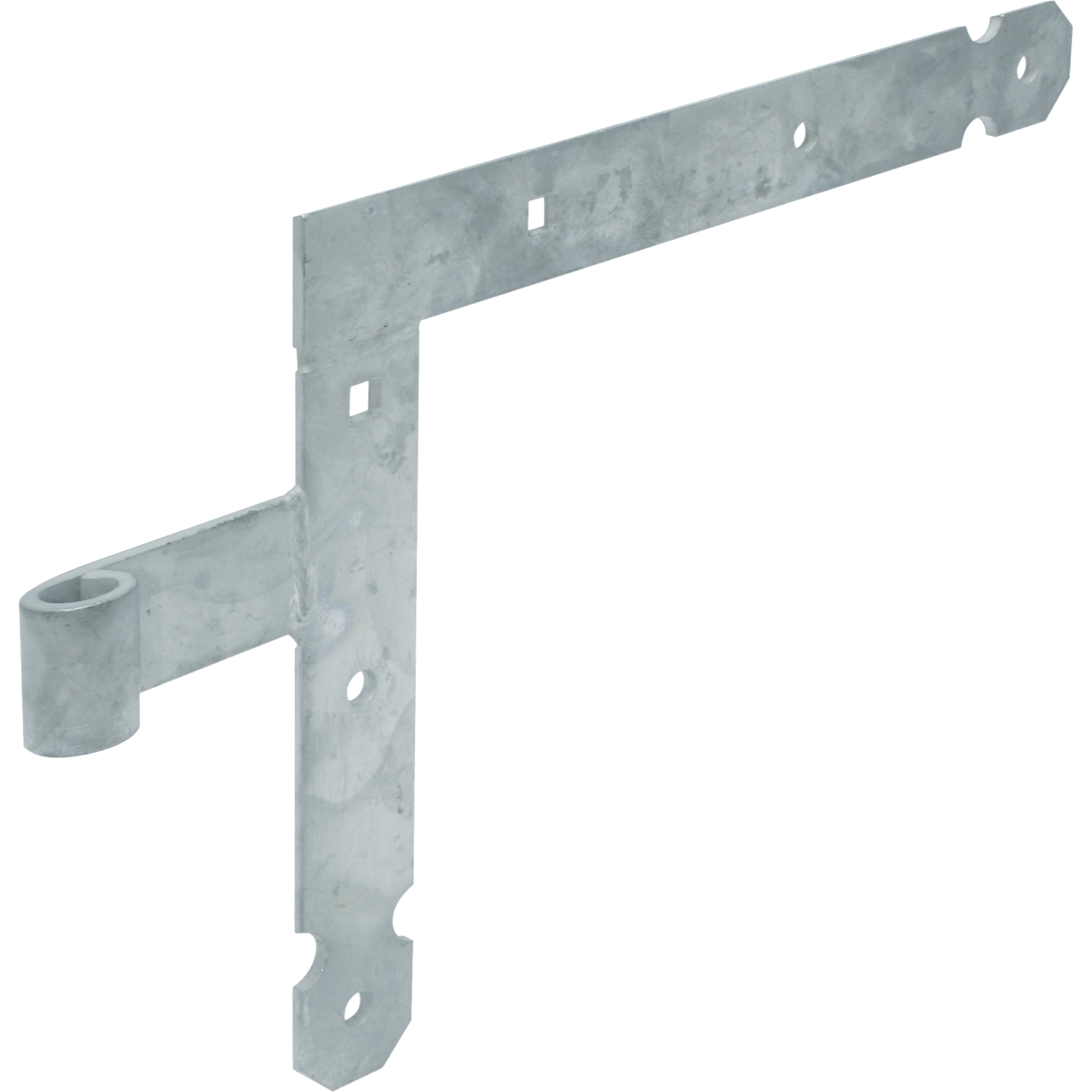

Warehouse hinge LU
Hook with blade in angle connection. For hinged fixing of light gates and doors. Suitable for top left or bottom right mounting on the outside of an outward-turning gate or door. For use in combination with a Ø16 thumb.
Details & dimensions
Article
Article number48381
EAN code8714318032104
Packaging
EAN code8714318032104
Packaging1 piece
Length385 mm
Width215 mm
Height30 mm
Dimensions
Warehouse hinge LU
Length (l)300 mm
Width (b)40 mm
Thickness (d)5 mm
Height (h)250 mm
Hole pattern4/9
Square hole2/9x9 mm
For pinion ØØ16 mm
Type(LB) Links boven - (RO) Rechts onder
MaterialSteel
Steel QualityS235
Surface treatment
