Bloembakhaken

Length 1
60 mm
140 mm
150 mm
Surface treatment
EV
EV-2

Details & dimensions

Article

Article number78010
EAN code8714318129040

Packaging

EAN code8714318129033
Packaging10 per box
Length330 mm
Width255 mm
Height90 mm

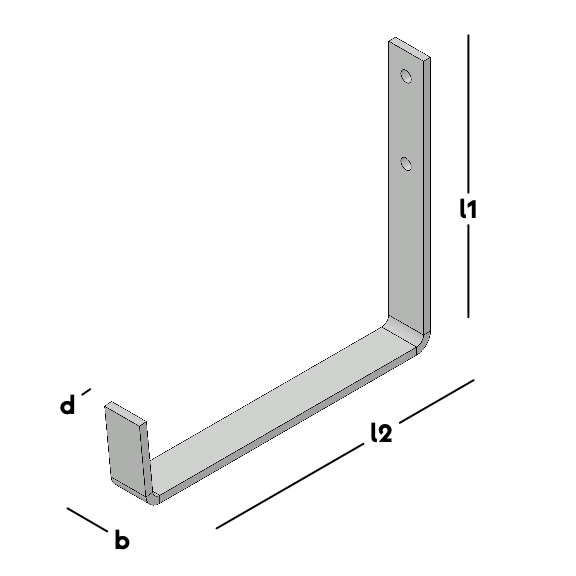

Dimensions

Length 1 (l1)140 mm
Length 2 (l2)165 mm
Width (b)20 mm
Thickness (d)4 mm
Hole pattern2/6
Typerecht
MaterialSteel
Steel QualityDX51
Surface treatmentEV-2

Downloads

Drawings and models in 2D and 3D

DWG
DXF
IFC
PDF
