Bloembakhaken

Length 1
60 mm
140 mm
150 mm
Surface treatment
EV
EV-2

Details & dimensions

Article

Article number78015
EAN code8714318129064

Packaging

EAN code8714318129057
Packaging10 per box
Length320 mm
Width230 mm
Height175 mm

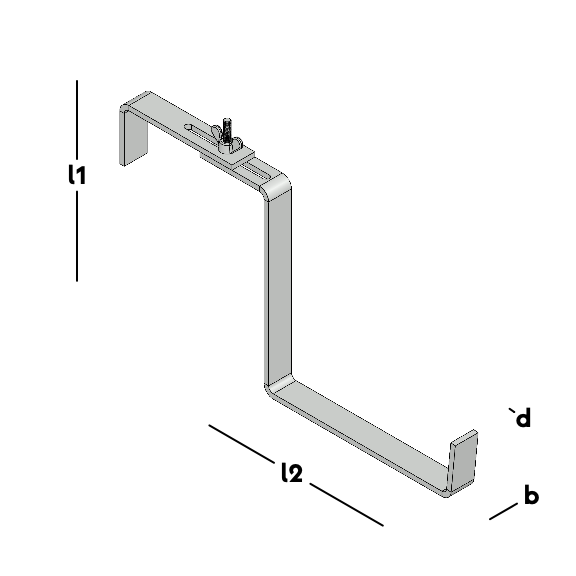

Dimensions

Length 1 (l1)150 mm
Length 2 (l2)165 mm
Width (b)20 mm
Thickness (d)4 mm
Slotted hole2/5,5x40 mm
Typeverstelbaar
MaterialSteel
Steel QualityDX51
Surface treatmentEV-2

Downloads

Drawings and models in 2D and 3D

DWG
DXF
IFC
PDF
