Slide Bolt

Universal sliding bolt for locking doors, gates and shutters, among others.

Length
Width
50 mm
54 mm
55 mm
Surface treatment
EV
EV-2
ZV

Details & dimensions

Article

Article number74436
EAN code8714318043520

Packaging

EAN code8714318107758
Packaging10 per box
Length190 mm
Height75 mm

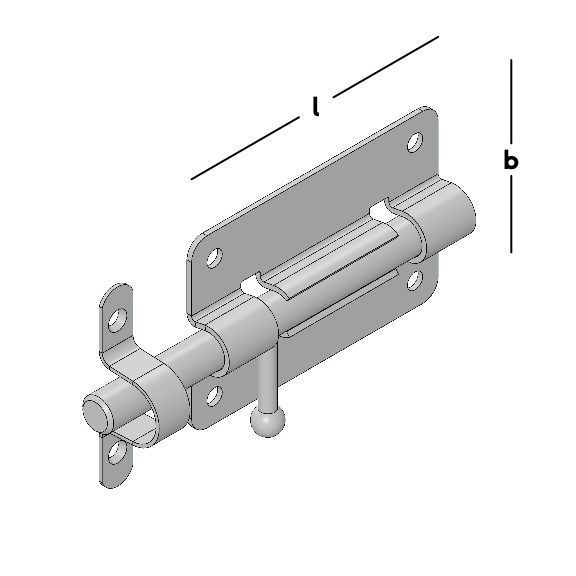

Dimensions

Slide Bolt

Length (l)80 mm
Width (b)54 mm
Hole pattern2/4-4/5
Result pen40 mm, pinion Ø10
MaterialSteel
Steel QualityDX51
Surface treatmentEV

Downloads

Drawings and models in 2D and 3D
