Slide Bolt

Universal sliding bolt for locking doors, gates and shutters, among others.

Length
Width
50 mm
54 mm
55 mm
Surface treatment
EV
EV-2
ZV

Details & dimensions

Article

Article number74437
EAN code8714318043537

Packaging

EAN code8714318107765
Packaging10 per box
Length160 mm
Width112 mm
Height104 mm

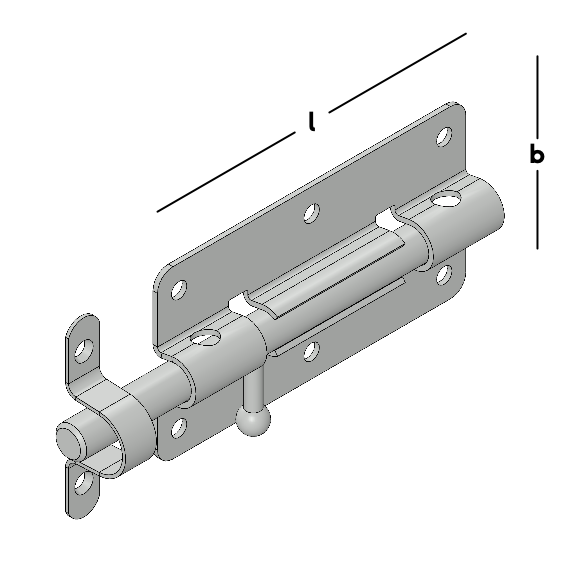

Dimensions

Slide Bolt

Length (l)100 mm
Width (b)50 mm
Hole pattern2/4-6/5
Result pen30 mm, pinion Ø10
MaterialSteel
Steel QualityDX51
Surface treatmentEV

Downloads

Drawings and models in 2D and 3D
