Strap hinge

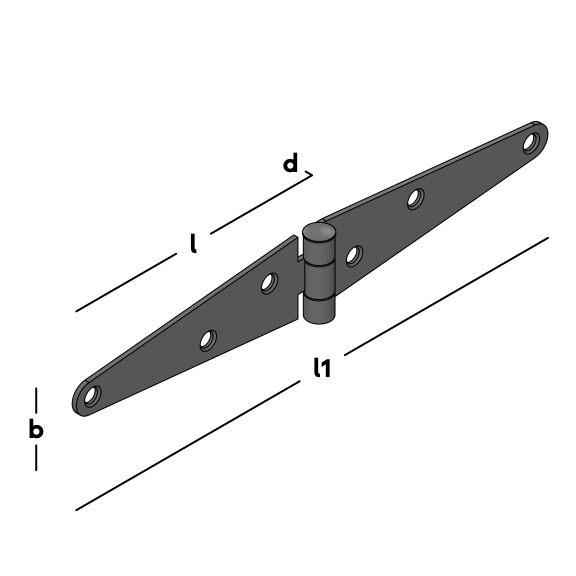

Hinge with extended blade on both sides.

Length 1

Length 2

Width

Thickness

Surface treatment

EPZ

EV-2

Details & dimensions

Article number40173

EAN code8714318064303

EAN code8714318064310

Packaging10 per box

Length160 mm

Width110 mm

Height115 mm

Length 1 (l1)200 mm

Length 2 (l2)100 mm

Width (b)30 mm

Thickness (d)1,5 mm

Hole pattern6/5,5

MaterialSteel

Steel QualityDX51

Surface treatment EPZ

Drawings and models in 2D and 3D

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Length 1	Length 2	Width	Thickness	Hole pattern	Material	Steel Quality
Strap hinge	40102	10 per box	150 mm	75 mm	27 mm	1,5 mm	6/5,5	Steel	DX51
Strap hinge	40103	10 per box	200 mm	100 mm	30 mm	1,75 mm	6/5,5	Steel	DX51
Strap hinge	40105	10 per box	250 mm	125 mm	34 mm	2 mm	8/6	Steel	DX51
Strap hinge	40107	10 per box	300 mm	150 mm	38 mm	2 mm	8/6	Steel	DX51
	40108	10 per box	300 mm	150 mm	50 mm	2 mm	8/6	Steel	DX51
Strap hinge	40109	10 per box	400 mm	200 mm	44 mm	2 mm	8/7	Steel	DX51
Strap hinge	40110	10 per box	500 mm	250 mm	50 mm	2 mm	8/7	Steel	DX51
	40111	10 per box	500 mm	500 mm	54 mm	2,5 mm	8/4,5	Steel	DX51
Strap hinge	40172	10 per box	150 mm	75 mm	27 mm	1,5 mm	6/5,5	Steel	DX51
Strap hinge	40173	10 per box	200 mm	100 mm	30 mm	1,5 mm	6/5,5	Steel	DX51
Strap hinge	40175	10 per box	250 mm	125 mm	34 mm	2 mm	8/6	Steel	DX51
Strap hinge	40177	10 per box	300 mm	150 mm	38 mm	2 mm	8/6	Steel	DX51
Strap hinge	40179	10 per box	400 mm	200 mm	44 mm	2 mm	8/7	Steel	DX51
Strap hinge	40180	10 per box	500 mm	250 mm	50 mm	2 mm	8/7	Steel	DX51
