Strap hinge

Hinge with extended blade on both sides.

Length 1
Length 2
Width
Thickness
Surface treatment
EPZ
EV
EV-2

Details & dimensions

Article

Article number40180
EAN code8714318064747

Packaging

EAN code8714318064761
Packaging10 per box
Length270 mm
Width220 mm
Height70 mm

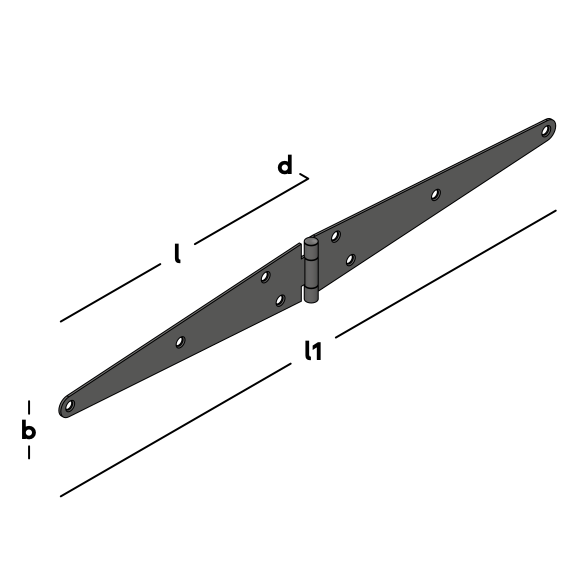

Dimensions

Strap hinge

Length 1 (l1)500 mm
Length 2 (l2)250 mm
Width (b)50 mm
Thickness (d)2 mm
Hole pattern8/7
MaterialSteel
Steel QualityDX51
Surface treatmentEPZ
