Cup hook plain

Name: Cup hook plain
SKU: 80035004

Threaded cup hook for creating powerful attachment points. Designed to be used with plugs featuring internal threading for secure fastening. Available in various sizes.

Length 1

Length 2

Diameter

Details & dimensions

Article

Article number80035004

EAN code8714318013004

Packaging

EAN code8714318111656

Packaging100 per box

Length105 mm

Width70 mm

Height80 mm

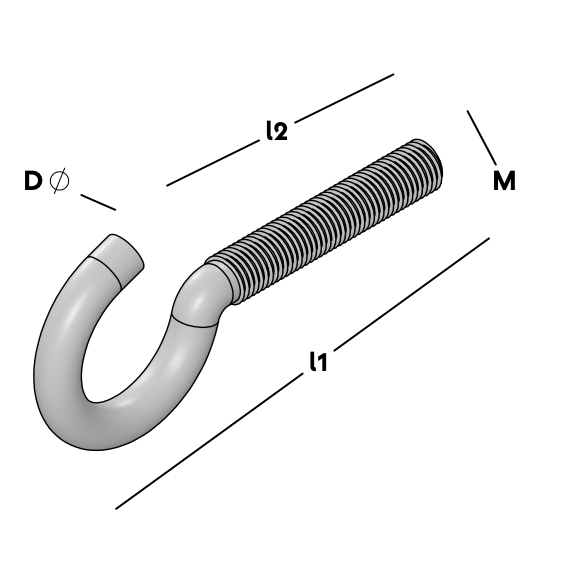

Dimensions

Cup hook plain

Length 1 (l1)50 mm

Length 2 (l2)23 mm

Diameter4,4 mm

Maximum pulling force12,5 kg

Metric thread (M)5 M

Size eye16 Ø

MaterialSteel

Steel QualityDX51

Surface treatment

Name	Article number	Packaging	Length 1	Length 2	Diameter	Maximum pulling force	Metric thread	Size eye	Material	Steel Quality	Surface treatment
Cup hook plain	80035019	100 per box	80 mm	42 mm	7 mm	40 kg	8 M	22 Ø	Steel	DX51	EV
Cup hook plain	80035016	100 per box	70 mm	32 mm	7 mm	40 kg	8 M	22 Ø	Steel	DX51	EV
Cup hook plain	80035013	100 per box	60 mm	30 mm	5,2 mm	25 kg	6 M	18 Ø	Steel	DX51	EV
Cup hook plain	80035010	100 per box	50 mm	20 mm	5,2 mm	25 kg	6 M	18 Ø	Steel	DX51	EV
Cup hook plain	80035007	100 per box	60 mm	30 mm	4,4 mm	12,5 kg	5 M	16 Ø	Steel	DX51	EV
Cup hook plain	80035004	100 per box	50 mm	23 mm	4,4 mm	12,5 kg	5 M	16 Ø	Steel	DX51	EV
Cup hook plain	80035001	100 per box	50 mm	25 mm	3,5 mm	9 kg	4 M	16 Ø	Steel	DX51	EV
