Cup hook plain

Threaded cup hook for creating powerful attachment points. Designed to be used with plugs featuring internal threading for secure fastening. Available in various sizes.

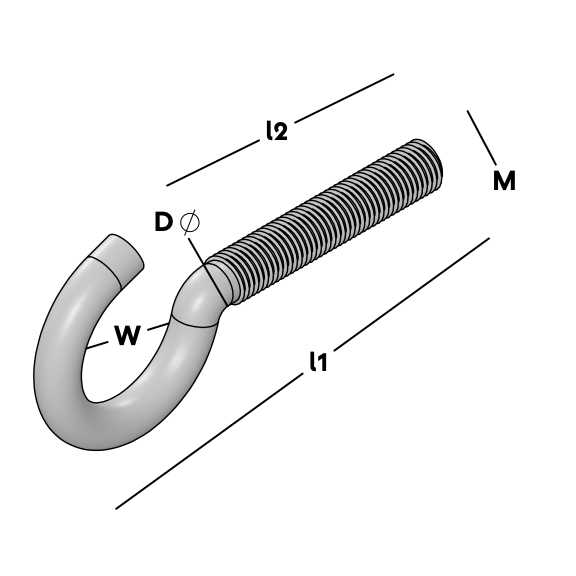

Length 1

Length 2

Diameter

Details & dimensions

Article

Article number80035019

EAN code8714318013059

Packaging

EAN code8714318111700

Packaging100 per box

Length180 mm

Width95 mm

Height111 mm

Dimensions

Cup hook plain

Length 1 (l1)80 mm

Length 2 (l2)42 mm

Diameter7 mm

Maximum pulling force40 kg

Metric thread (M)8 M

Size eye22 Ø

MaterialSteel

Steel QualityDX51

Surface treatment

Name	Article number	Packaging	Lengte 1	Lengte 2	Diameter Ø	Trekkracht max.	Metrisch draad	Maat oog	Materiaal	Staalkwaliteit
Schroefhaak metrisch draad	80035019	100 per box	80 mm	42 mm	7 mm	40 kg	8 M	22 Ø	Staal	DX51
Schroefhaak metrisch draad	80035016	100 per box	70 mm	32 mm	7 mm	40 kg	8 M	22 Ø	Staal	DX51
Schroefhaak metrisch draad	80035013	100 per box	60 mm	30 mm	5,2 mm	25 kg	6 M	18 Ø	Staal	DX51
Schroefhaak metrisch draad	80035010	100 per box	50 mm	20 mm	5,2 mm	25 kg	6 M	18 Ø	Staal	DX51
Schroefhaak metrisch draad	80035007	100 per box	60 mm	30 mm	4,4 mm	12,5 kg	5 M	16 Ø	Staal	DX51
Schroefhaak metrisch draad	80035004	100 per box	50 mm	23 mm	4,4 mm	12,5 kg	5 M	16 Ø	Staal	DX51
Schroefhaak metrisch draad	80035001	100 per box	50 mm	25 mm	3,5 mm	9 kg	4 M	16 Ø	Staal	DX51
