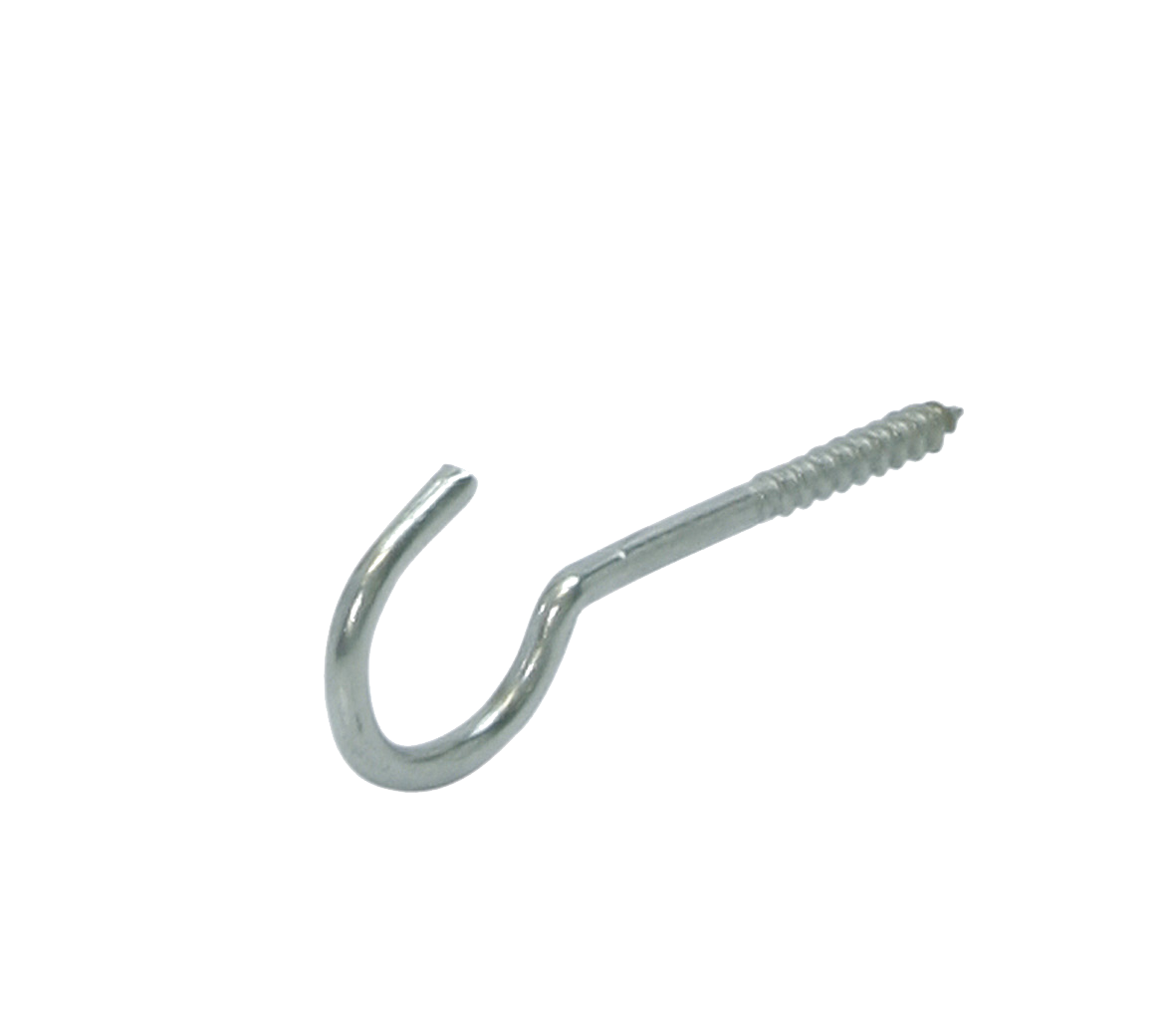

Cup hook with wood grain plain

Name: Cup hook with wood grain plain
SKU: 80030145

Self-tapping cup hook for creating strong attachment points. Suitable for both wall and ceiling applications. Available in various sizes in galvanized or stainless steel.

Length

Length 1

Length 2

Diameter

Material

RVS 304

Steel

Steel Quality

DX51

W-Nr.: 1.4301

Surface treatment

Details & dimensions

Article

Article number80030145

EAN code8714318012687

Packaging

EAN code8714318123703

Packaging100 per box

Length65 mm

Width45 mm

Height35 mm

Dimensions

Cup hook with wood grain plain

Length 1 (l1)25 mm

Length 2 (l2)8 mm

Diameter2,15 mm

Wood Wire2,7 Ht

Size eye7 Ø

MaterialSteel

Steel QualityDX51

Surface treatmentMS

Name	Article number	Packaging	Length	Length 1	Length 2	Diameter	Wood Wire	Size eye	Material	Steel Quality	Surface treatment
Cup hook with wood grain plain	80030001	200 per box	15 mm	15 mm	5 mm	1,8 mm	2,2 Ht	5 Ø	Steel	DX51	EV
Cup hook with wood grain plain	80030004	100 per box	20 mm	20 mm	8 mm	2,15 mm	2,7 Ht	7 Ø	Steel	DX51	EV
Cup hook with wood grain plain	80030007	100 per box	25 mm	25 mm	8 mm	2,15 mm	2,7 Ht	7 Ø	Steel	DX51	EV
Cup hook with wood grain plain	80030010	100 per box	30 mm	30 mm	10 mm	2,3 mm	3 Ht	9 Ø	Steel	DX51	EV
Cup hook with wood grain plain	80030016	100 per box	40 mm	40 mm	12 mm	3,2 mm	4 Ht	12 Ø	Steel	DX51	EV
Cup hook with wood grain plain	80030019	100 per box	50 mm	50 mm	15 mm	3,45 mm	4,3 Ht	14 Ø	Steel	DX51	EV
Cup hook with wood grain plain	80030022	100 per box	60 mm	60 mm	22 mm	4,4 mm	5 Ht	18 Ø	Steel	DX51	EV
Cup hook with wood grain plain	80030025	100 per box	70 mm	70 mm	22 mm	3,8 mm	4,8 Ht	22 Ø	Steel	DX51	EV
Cup hook with wood grain plain	80030028	100 per box	80 mm	80 mm	25 mm	4,4 mm	5 Ht	20 Ø	Steel	DX51	EV
Cup hook with wood grain plain	80030031	100 per box	100 mm	100 mm	30 mm	4,8 mm	5,5 Ht	25 Ø	Steel	DX51	EV
Cup hook with wood grain plain	80030049	100 per box	-	40 mm	12 mm	2,9 mm	2,9 Ht	12 Ø	RVS 304	W-Nr.: 1.4301	304
Cup hook with wood grain plain	80030052	100 per box	-	50 mm	15 mm	3,3 mm	3,3 Ht	16 Ø	RVS 304	W-Nr.: 1.4301	304
Cup hook with wood grain plain	80030055	100 per box	-	60 mm	22 mm	3,3 mm	3,3 Ht	16 Ø	RVS 304	W-Nr.: 1.4301	304
Cup hook with wood grain plain	80030076	100 per box	-	20 mm	8 mm	2,15 mm	2,7 Ht	7 Ø	Steel	DX51	VM
Cup hook with wood grain plain	80030082	100 per box	-	30 mm	10 mm	2,4 mm	3 Ht	9 Ø	Steel	DX51	VM
Cup hook with wood grain plain	80030088	100 per box	-	50 mm	15 mm	3,45 mm	4,3 Ht	14 Ø	Steel	DX51	VM
Cup hook with wood grain plain	80030091	100 per box	-	60 mm	22 mm	4,4 mm	5 Ht	18 Ø	Steel	DX51	VM
Cup hook with wood grain plain	80030094	100 per box	-	80 mm	25 mm	4,2 mm	5,3 Ht	25 Ø	Steel	DX51	VM
Cup hook with wood grain plain	80030112	100 per box	-	20 mm	8 mm	2,15 mm	2,7 Ht	7 Ø	Steel	DX51	EPW
Cup hook with wood grain plain	80030115	100 per box	-	30 mm	10 mm	2,4 mm	3 Ht	9 Ø	Steel	DX51	EPW
Cup hook with wood grain plain	80030118	100 per box	-	40 mm	12 mm	3,2 mm	3,5 Ht	12 Ø	Steel	DX51	EPW
Cup hook with wood grain plain	80030121	100 per box	-	50 mm	15 mm	3,45 mm	4,3 Ht	14 Ø	Steel	DX51	EPW
Cup hook with wood grain plain	80030124	100 per box	-	60 mm	22 mm	4,4 mm	5 Ht	18 Ø	Steel	DX51	EPW
Cup hook with wood grain plain	80030142	100 per box	-	20 mm	8 mm	2,15 mm	2,7 Ht	7 Ø	Steel	DX51	MS
Cup hook with wood grain plain	80030145	100 per box	-	25 mm	8 mm	2,15 mm	2,7 Ht	7 Ø	Steel	DX51	MS
Cup hook with wood grain plain	80030148	100 per box	-	30 mm	10 mm	2,4 mm	3 Ht	9 Ø	Steel	DX51	MS
Cup hook with wood grain plain	80030157	100 per box	-	60 mm	22 mm	4,4 mm	4 Ht	20 Ø	Steel	DX51	MS
Cup hook with wood grain plain	80030154	100 per box	-	50 mm	15 mm	3,3 mm	3,7 Ht	19 Ø	Steel	DX51	MS
Cup hook with wood grain plain	80030151	100 per box	-	40 mm	12 mm	3,2 mm	3,5 Ht	12 Ø	Steel	DX51	MS
