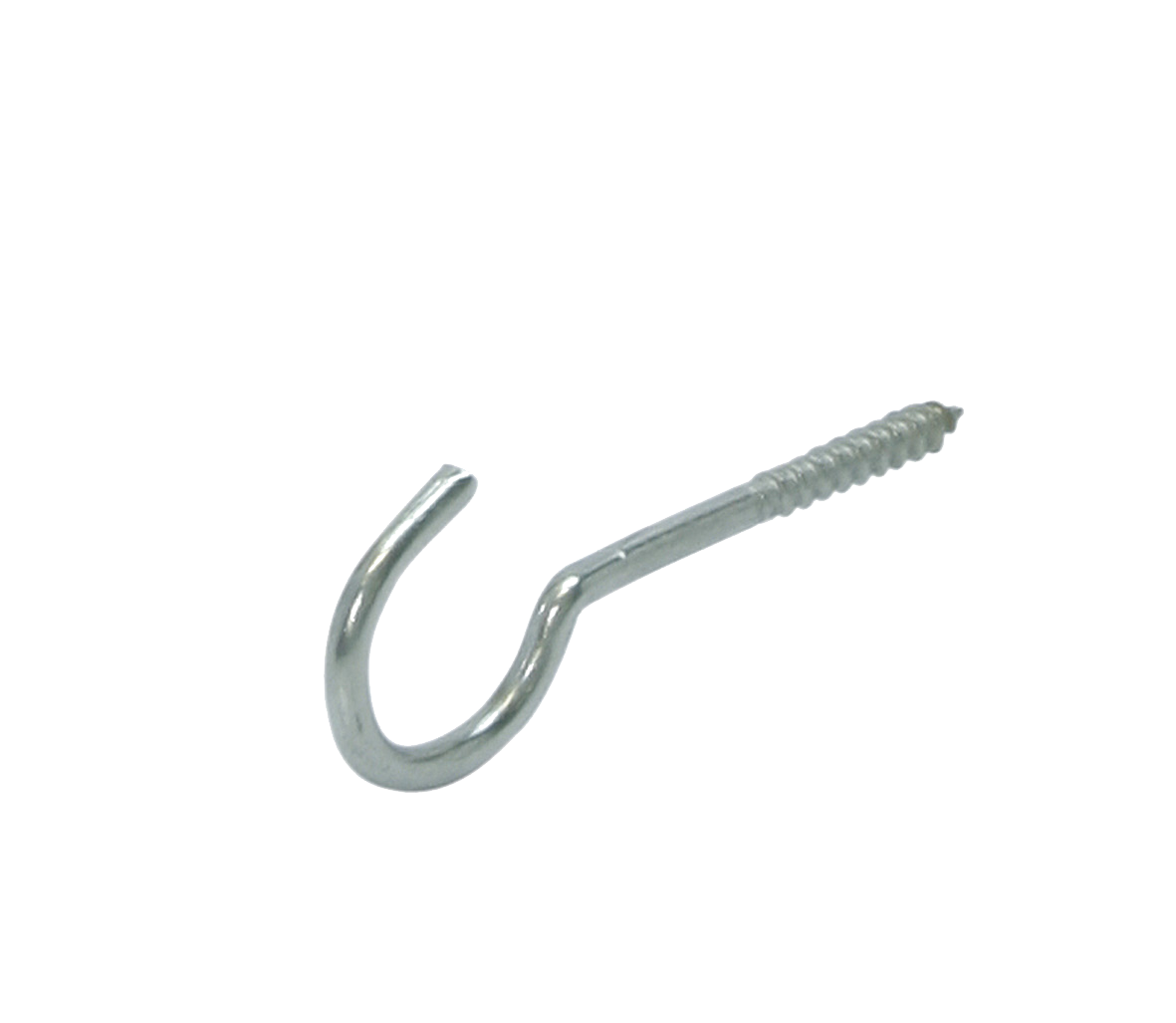

Cup hook with wood grain plain

Self-tapping cup hook for creating strong attachment points. Suitable for both wall and ceiling applications. Available in various sizes in galvanized or stainless steel.

Length

Length 1

Length 2

Diameter

Material

RVS 304

Steel

Steel Quality

DX51

W-Nr.: 1.4301

Surface treatment

Details & dimensions

Article

Article number80030154

EAN code8714318012717

Packaging

EAN code8714318111335

Packaging100 per box

Length95 mm

Width70 mm

Height50 mm

Dimensions

Cup hook with wood grain plain

Length 150 mm

Length 215 mm

Diameter3,3 mm

Wood Wire3,7 Ht

Size eye19 Ø

MaterialSteel

Steel QualityDX51

Surface treatmentMS

Name	Article number	Packaging	Length	Length 1	Length 2	Diameter	Wood Wire	Size eye	Material	Steel Quality	Surface treatment
Cup hook with wood grain plain	80030001	200 per box	15 mm	15 mm	5 mm	1,8 mm	2,2 Ht	5 Ø	Steel	DX51
Cup hook with wood grain plain	80030004	100 per box	20 mm	20 mm	8 mm	2,15 mm	2,7 Ht	7 Ø	Steel	DX51
Cup hook with wood grain plain	80030007	100 per box	25 mm	25 mm	8 mm	2,15 mm	2,7 Ht	7 Ø	Steel	DX51
Cup hook with wood grain plain	80030010	100 per box	30 mm	30 mm	10 mm	2,3 mm	3 Ht	9 Ø	Steel	DX51
Cup hook with wood grain plain	80030016	100 per box	40 mm	40 mm	12 mm	3,2 mm	4 Ht	12 Ø	Steel	DX51
Cup hook with wood grain plain	80030019	100 per box	50 mm	50 mm	15 mm	3,45 mm	4,3 Ht	14 Ø	Steel	DX51
Cup hook with wood grain plain	80030022	100 per box	60 mm	60 mm	22 mm	4,4 mm	5 Ht	18 Ø	Steel	DX51
Cup hook with wood grain plain	80030025	100 per box	70 mm	70 mm	22 mm	3,8 mm	4,8 Ht	22 Ø	Steel	DX51
Cup hook with wood grain plain	80030028	100 per box	80 mm	80 mm	25 mm	4,4 mm	5 Ht	20 Ø	Steel	DX51
Cup hook with wood grain plain	80030031	100 per box	100 mm	100 mm	30 mm	4,8 mm	5,5 Ht	25 Ø	Steel	DX51
Cup hook with wood grain plain	80030049	100 per box	-	40 mm	12 mm	2,9 mm	2,9 Ht	12 Ø	RVS 304	W-Nr.: 1.4301
Cup hook with wood grain plain	80030052	100 per box	-	50 mm	15 mm	3,3 mm	3,3 Ht	16 Ø	RVS 304	W-Nr.: 1.4301
Cup hook with wood grain plain	80030055	100 per box	-	60 mm	22 mm	3,3 mm	3,3 Ht	16 Ø	RVS 304	W-Nr.: 1.4301
Cup hook with wood grain plain	80030076	100 per box	-	20 mm	8 mm	2,15 mm	2,7 Ht	7 Ø	Steel	DX51	VM
Cup hook with wood grain plain	80030082	100 per box	-	30 mm	10 mm	2,4 mm	3 Ht	9 Ø	Steel	DX51	VM
Cup hook with wood grain plain	80030088	100 per box	-	50 mm	15 mm	3,45 mm	4,3 Ht	14 Ø	Steel	DX51	VM
Cup hook with wood grain plain	80030091	100 per box	-	60 mm	22 mm	4,4 mm	5 Ht	18 Ø	Steel	DX51	VM
Cup hook with wood grain plain	80030094	100 per box	-	80 mm	25 mm	4,2 mm	5,3 Ht	25 Ø	Steel	DX51	VM
Cup hook with wood grain plain	80030112	100 per box	-	20 mm	8 mm	2,15 mm	2,7 Ht	7 Ø	Steel	DX51
Cup hook with wood grain plain	80030115	100 per box	-	30 mm	10 mm	2,4 mm	3 Ht	9 Ø	Steel	DX51
Cup hook with wood grain plain	80030118	100 per box	-	40 mm	12 mm	3,2 mm	3,5 Ht	12 Ø	Steel	DX51
Cup hook with wood grain plain	80030121	100 per box	-	50 mm	15 mm	3,45 mm	4,3 Ht	14 Ø	Steel	DX51
Cup hook with wood grain plain	80030124	100 per box	-	60 mm	22 mm	4,4 mm	5 Ht	18 Ø	Steel	DX51
Cup hook with wood grain plain	80030142	100 per box	-	20 mm	8 mm	2,15 mm	2,7 Ht	7 Ø	Steel	DX51	MS
Cup hook with wood grain plain	80030145	100 per box	-	25 mm	8 mm	2,15 mm	2,7 Ht	7 Ø	Steel	DX51	MS
Cup hook with wood grain plain	80030148	100 per box	-	30 mm	10 mm	2,4 mm	3 Ht	9 Ø	Steel	DX51	MS
Cup hook with wood grain plain	80030157	100 per box	-	60 mm	22 mm	4,4 mm	4 Ht	20 Ø	Steel	DX51	MS
Cup hook with wood grain plain	80030154	100 per box	-	50 mm	15 mm	3,3 mm	3,7 Ht	19 Ø	Steel	DX51	MS
Cup hook with wood grain plain	80030151	100 per box	-	40 mm	12 mm	3,2 mm	3,5 Ht	12 Ø	Steel	DX51	MS
